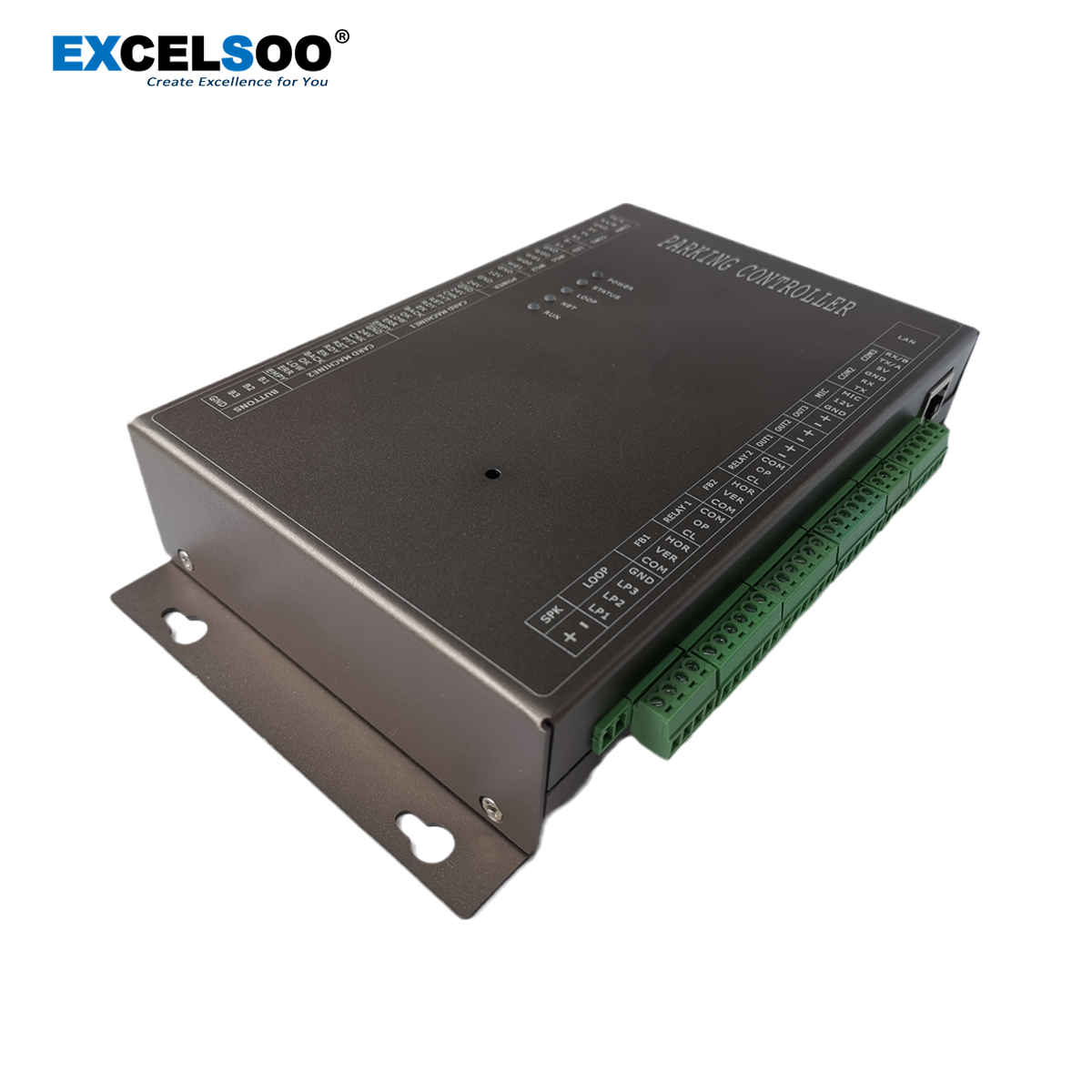

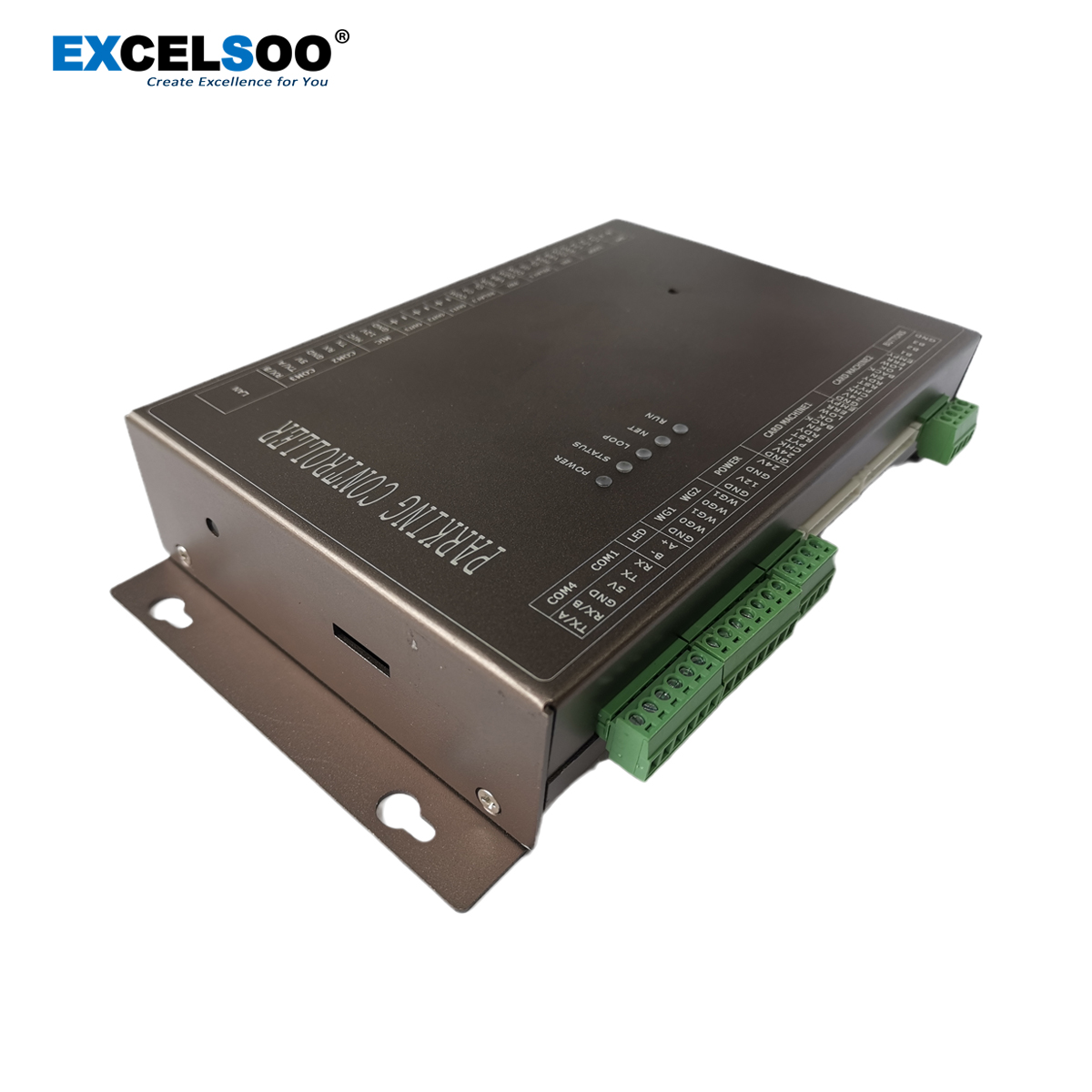

Smart Network Parking Access Controller with Free SDK NP-3300
Smart TCP/IP Network Parking Access Controller with Free SDK NP-3300
Software Reengineering Version;
Free SDK and technical support;
TCP Parking Management System Controller
ARM chip, TCP/IP network, and real-time embedded OS, Parking Access Control Unit (ACU) lead the parking system into a new IP digital age. Compared with the traditional RS485 bus, whether communication speed or performance, TCP/IP is a quantum leap.
Description:
NP-3300 is a Software Reengineering Version Parking System Controller with TCPIP Network; open-source and SDK are provided for free. User can program their own parking software based on our hardware and free SDK if you have an engineer. We can provide a demo for your reference, for example, Java / C+ /C++ /C# /Basic.
Application:
Residential estate, apartment, office building, shopping mall and so on the unattended car park.
Datasheet:
ELECTRICAL CHARACTERISTICS |
|
• External AC Input Power Voltage: |
230/110V±15% 1.5A 50/60Hz |
• Internal DC Output Power Supply: |
DC 12V/5A for the central control unit |
DC 24V/2A for card dispenser |
|
• Total Power: |
100W |
COMMUNICATIONS DATA |
|
• Mode of communication: |
Base TCP/IP, Rear TCP/IP |
• TCP/IP Remote LAN Support: |
YES, supports remote TCP/IP subnet |
• Communications Data Rate: |
≥100.0 Mbps |
• Remote Firmware Upgrade Support: |
YES, CCU (Central Control Unit) firmware may be changed by PC: 64 K with Bootstrap loader and FLASH memory architecture |
• Communication transmission distance |
Unlimited if the LAN is connected by optical fiber |
APPLICABLE CARD |
|
• Reader Interface on CCU |
RS-232 *4 , RS-485 *3 ,Wiegand 26/34 *2 |
ENVIRONMENTAL |
|
• Working Temperature |
minors 30°C to 70 °C |
• Working environments |
indoor, outdoor |
• Relative humidity |
≤95% coagulation free |
1
- Free SDK and technical support;
- Software & hardware OEM is accepted;
- TCPIP Network;
- RS232 ports *4, RS485 ports *3;
- 2 relay output and feedback ports; light output *3;
- Loop input ports *3;
- Wiegand 26/34 ports *2;
- 12Pin TTL ports *2;
