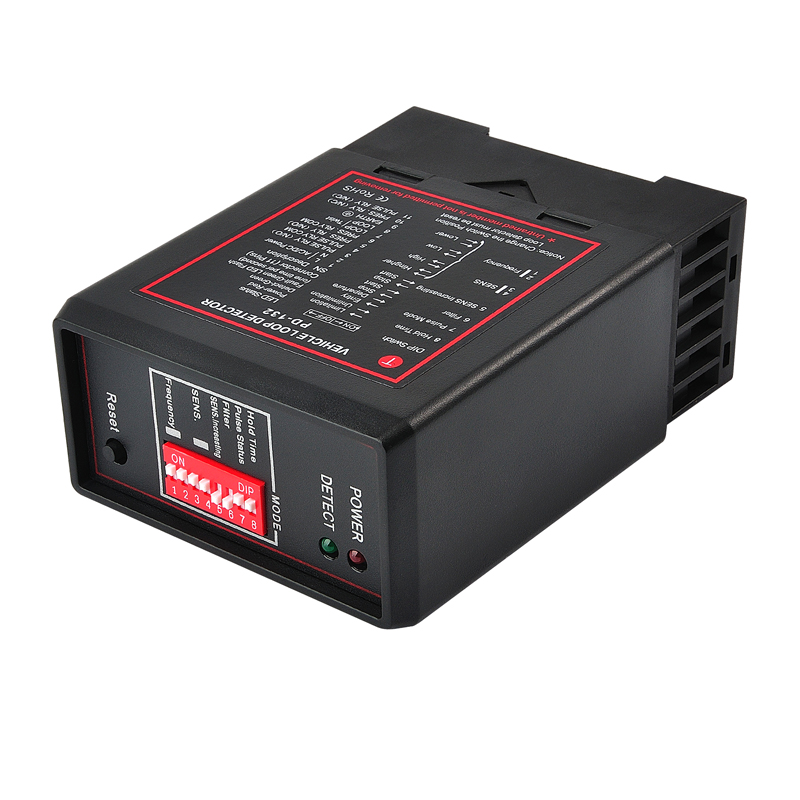

Single Loop Detector PD-132
Features
- Industrial grade design
- 4 sensitivity levels adjustable.
- Supports multi-output ports
- Fault self detected function
- Realized barrier close automatically after car pass
- Supports to connect 1 loop
Specification
- Supply voltage: 230V AC , 115V AC, 24V DC/AC, 12V DC/AC
- ( Check the label on the detector)
- Voltage tolerance AC: +10% / -15%
- Voltage tolerance DC: ±15%
- Power Consumption: 4.5VA
- Output relays: 240V/5A
- Operating temperature: -20°C to +65°C
- Storage temperature: -40°C to +85°C
- Frequency range: 20 kHz to 170 kHz
- Reaction time: 10ms
- Presence Time: Unlimited / limited when loop is permanently covered 10 minutes
- Sensitivity: Adjustable in 4 increments
- Loop inductance: Total loop plus connection wiring:50μH to 1000μH.
- The ideal is 100μH to 300μH
- Loop Feeder: Maximum length 20 meters, twisted at least 20 times per meter
- Size of Housing: 78x40x108 mm (L x W x H)
- Reaction Time: 10ms
- Presence Time: Unlimited / limited 10 minutes
- Sensitivity:4 levels adjustable
- Presence Time: Unlimited / limited 10 minutes
- Sensitivity:4 levels adjustable
