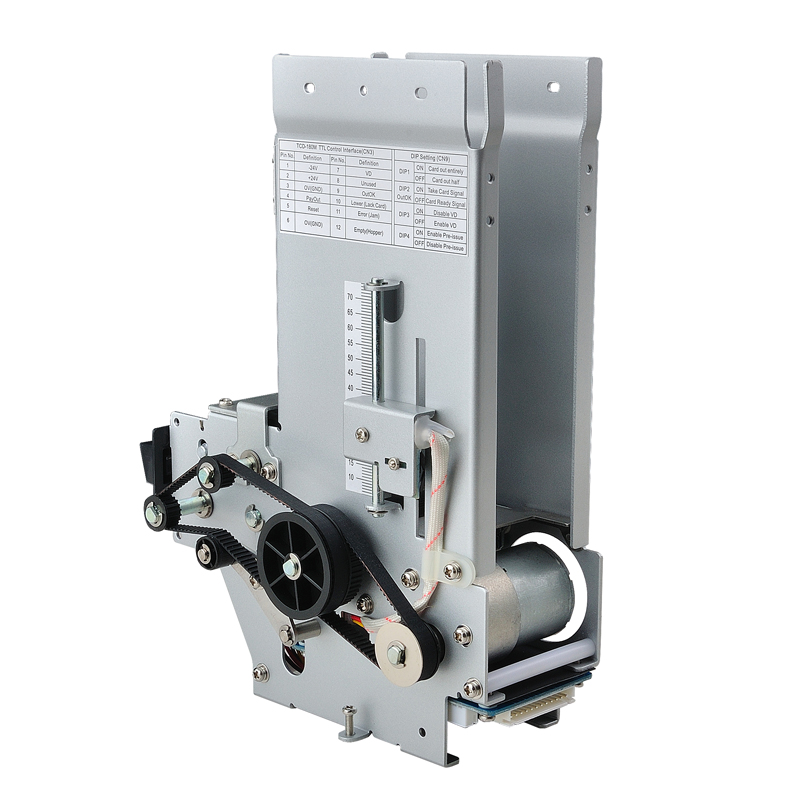

EX-CD-180 Card Dispenser Instructions

1. Main Characteristics

• Industrial design, adjustable for bad environments;
• Simulated manpower friction card ;
• Watchdog of hardware and embedded operating system to ensure proper running;
• Pre-dispense function accelerates dispensing speed;
• Connectable with the vehicle detector to achieve card issuing and “one car, one card”;
• Automatic buzzer alarm supported;
• Provide both RS232 and I/O voltage control interface;
• Slide card stacker with a capacity of 40pc;
• Adjustable of card stacker with a capacity of 120pc each;
• Automatic withdrawal to prevent card loss (TCD800 series);
• Slide design to make installation and disassembling easier;

2. Main Technical Data

• Operating voltage: 24V DC (max 2A, static current 0.1A)
• Operating temperature: -20℃ to 85℃
• Operating humidity: 30-90% (comparatively)
• Use condition: install in bin
• Card available: Width: 54+/-0.5mm Length: 85+/-0.5mm
• Thickness: 0.3-2.5mm (adjustable)
• Card material: Paper or Polyester card
• Net weight: 2.0kg (including the briquette)
• Time of issuing: max 0.5s
• Capacity of stacker: 150pcs (0.8mm), 100pcs available when an extra stacker is needed

3. Control Interface

  3.1  TTL Control Interface(CN3)

3.2 RS232 Control Interface
