Dual-frequency USB RFID Card Reader RFM-810
What is RFM-810 Dual-Frequency USB RFID Reader?
IC+ID (125 KHz + 13.56 MHz)
RFM-810 is a dual-frequency USB card reader that can read both EM protocol radio frequency cards and ISO14443A protocol radio frequency cards. Users do not need to load any drivers in using; they can plug and play at will (plug and play) without an external power supply. It is widely used in access control, information query, consumption system, library, meeting check-in, and other application fields.
SPECIFICATION |
|
Name: |
Dual-frequency USB RFID Card Reader |
Model: |
RFM-810 |
Size: |

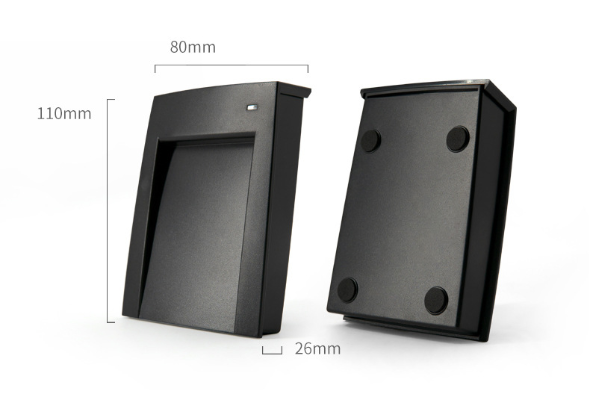

110*80*26mm |
Read/Write Speed: |
0.2S |
Read/Write Range: |
0-80mm |
Reading Interval |
0.5S |
Communication: |
USB |
Power Supply: |
USB |
Power Consumption and Current: |
DC: 5 V,100mA |
- Read Speed: 0.2S
- Port: USB
- Read/Write Range: 0-80mm
- Support OS: Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android
