Features

1. Industrial grade design
2. 10 sensitivity levels are adjustable.
3. Supports multi-output ports
4. Fault self detected function
5. Realized barrier close automatically after car pass
6. Supports to connect 2 loops
7. With direction discrimination function
   With delay output function

Specification

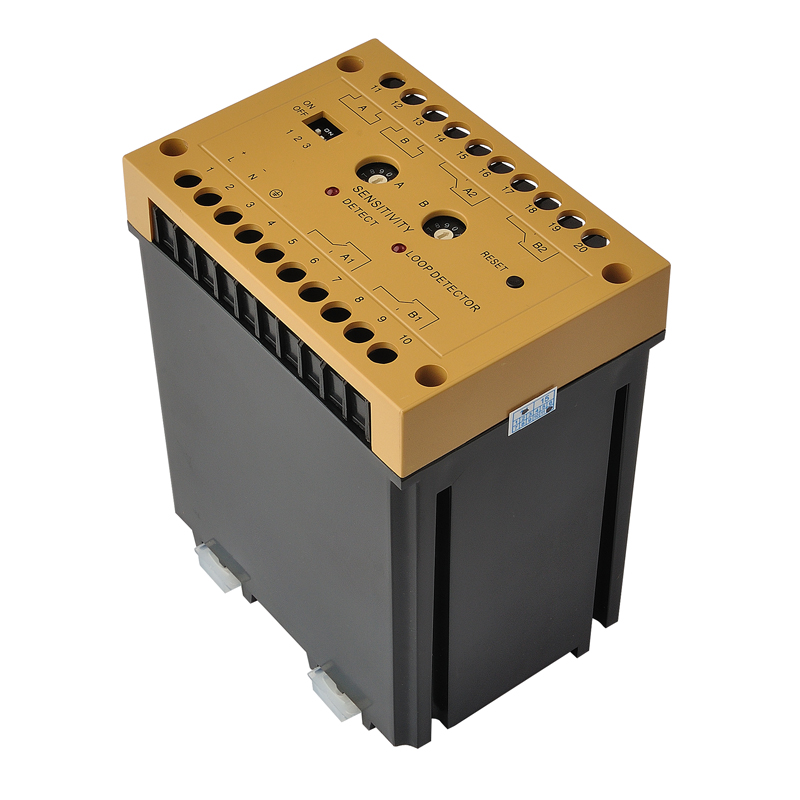

• Type: EX-LD-600（Dual Loops）
• Operating temp.: -30℃ ～ +75℃
• Storage temp.:      -40℃ ～ +85℃
• Relative humidity: ≤95%
• Shell: PC + ABS engineering plastics
• Installation: DIN rail
• Dimensions: 110×60×100 mm (L×W×H)
• Net Weight: 400g
• Operating voltages：    AC220V±10%
• Power consumption：＜5W
• Relay output： DC24V /3A
• Frequency range：20kHz ～ 170kHz
• Reaction time：20 ms
• Sensitivity：10 grades adjustable
• Loop inductance: Ideal 100µH～300µH Max 50µH～1000µH
• Loop Wire: Max 100m, twisted at least 20 times per meter, total resistance <10 Ohm
