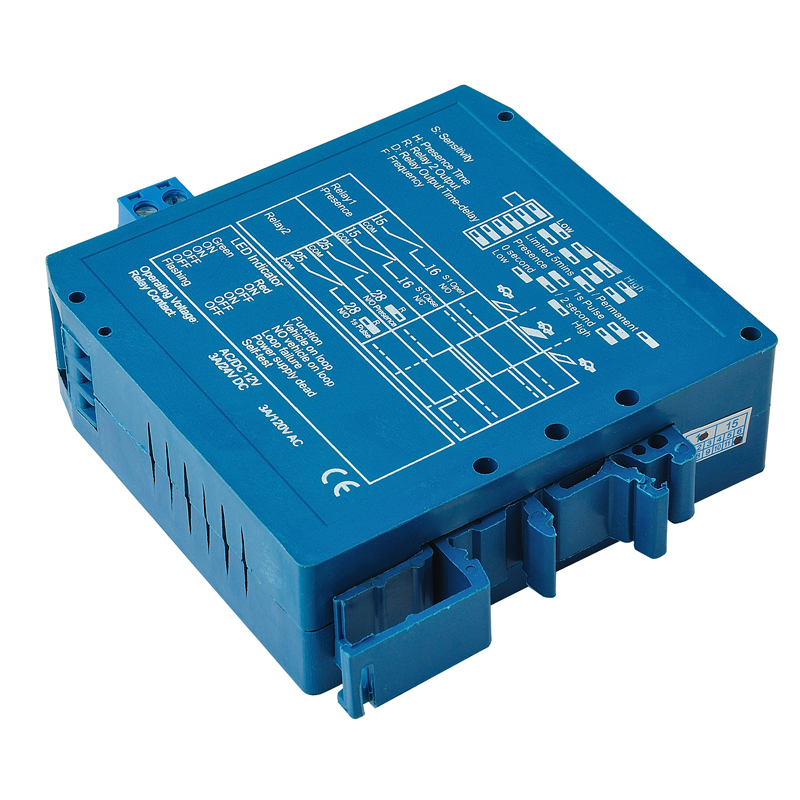

Single Loop Detector EX-VLD-M1H
Features
- When the DIP switch is on position or changing the presence output time, Self-detection would be done
- ABS align to the pillar which can combine with each other compactly
- Presence output time can be adjustable
- Work mode can be set by the DIP switch
- Pulse output or permanent output can be adjustable
Specification
Technical Data |
Power Supply |
DC 12V |
Power Consumption |
Max. 3W |
|
Voltage Tolerance |
AC: +10% / -15%
DC: ±15% |
|
Operating Temperature |
-20°C to +65°C |
|
Storage Temperature |
-40°C to +85°C |
|
Frequency Range |
20 kHz to 170 kHz |
|
Reaction Time |
10ms |
|
Presence Time |
Unlimited /limited when the loop is permanently covered 10 minutes |
|
Sensitivity |
Adjustable |
|
Loop Inductance |
Total loop plus connection wiring: 50μH to 1000μH; |
|
Feeder Wire |
Max. 20 meters, twisted at least 20 times per meter |
|
Size |
79*22.5*90mm(L*W*H ) |
|
Package |
Paper Carton |
|
Trade Terms |
EXW, FOB, and so on. |
|
Payment Terms |
100% TT before delivery or Western Union, Paypal, and so on. |
|
Delivery Time |
Sample:3 working days; Bulk orders: 5 to 7 days; |
|
MOQ |
1 pc |
- Reaction Time: 10ms
- Sensitivity: 3 levels adjustable
- Output Delay: 2s
- Power supply: AC/DC 12~24V
- Power consumption: 3W maximum
- Output relay: 120V/3A AC
- Sensitivity: 3 levels adjustable
- Output Delay: 2s
- Power supply: AC/DC 12~24V
- Power consumption: 3W maximum
- Output relay: 120V/3A AC
