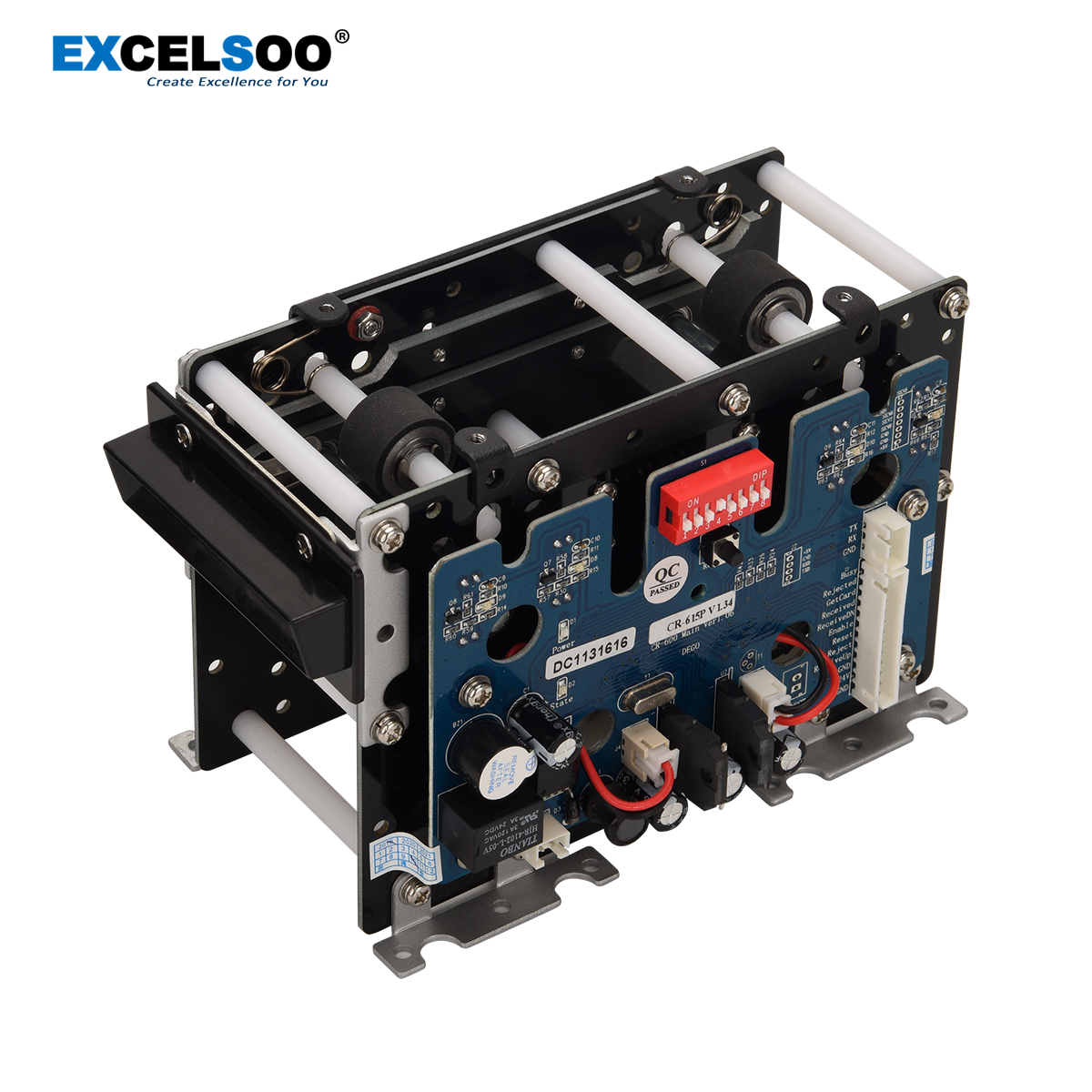

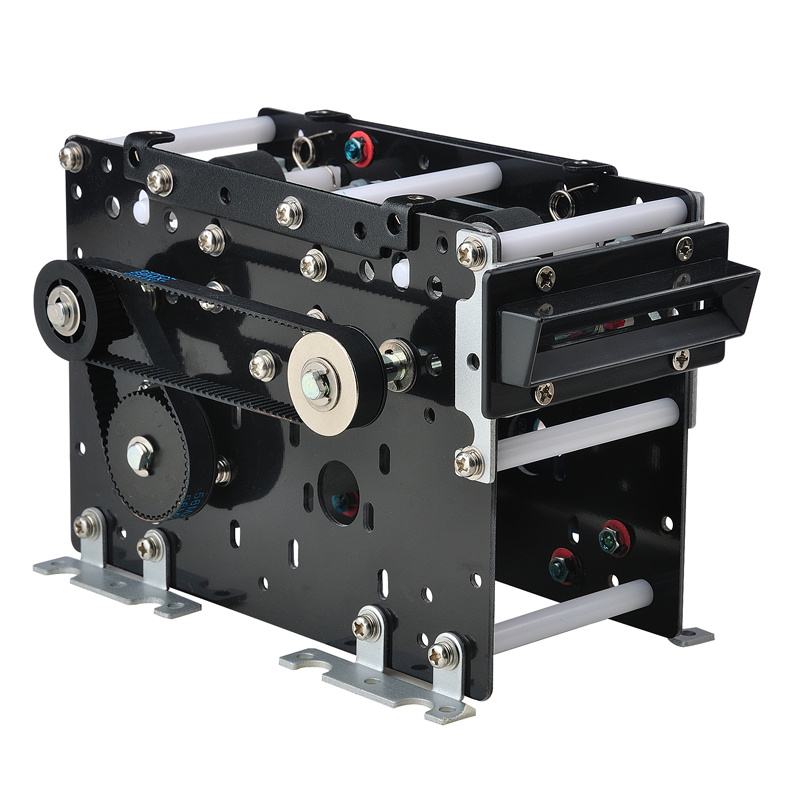

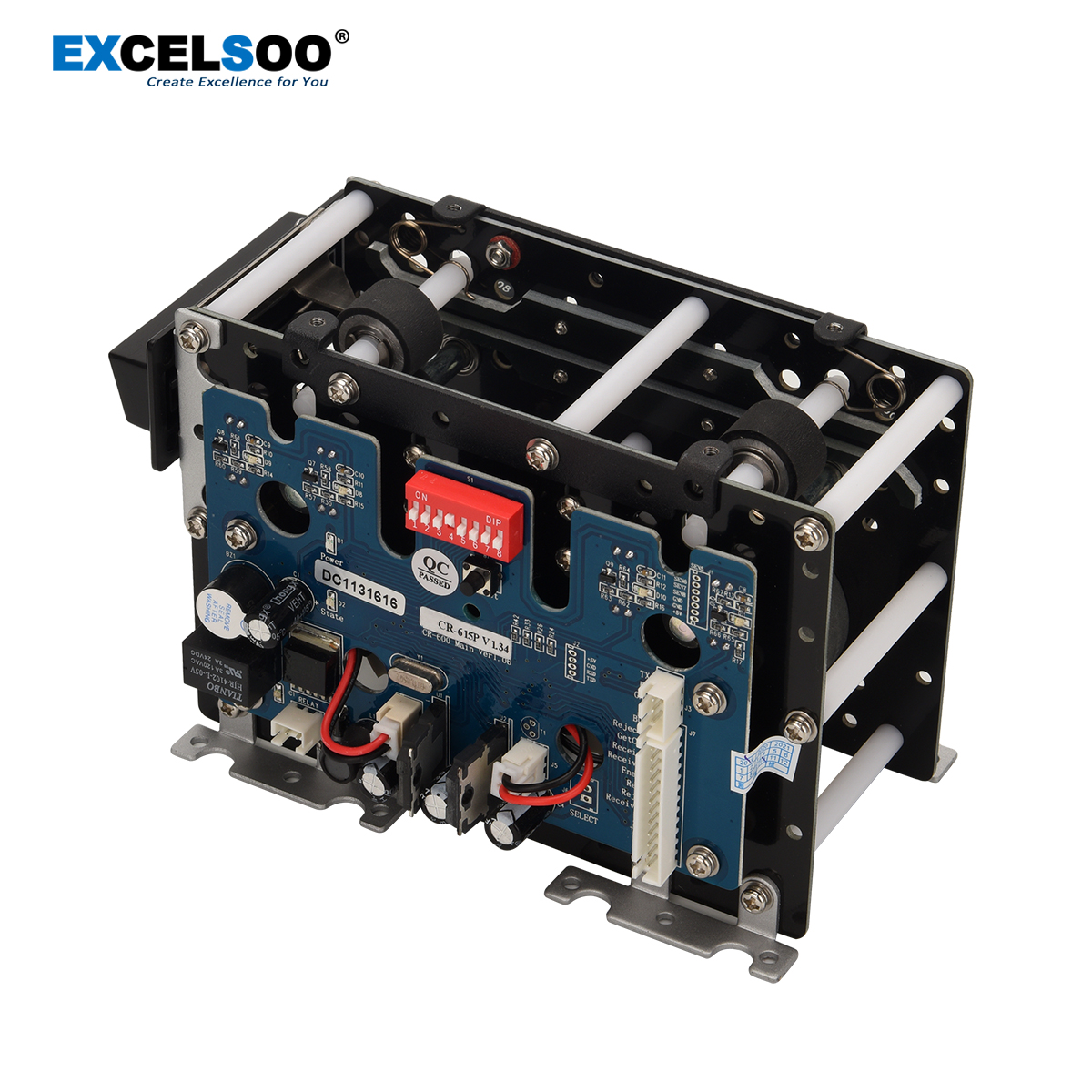

EX-CR-610 Card Collector Instructions

1. Main Characteristics

• Industrial design, adjustable for bad environments;
• Simulated manpower friction card ;
• Watchdog of hardware and embedded operating system to ensure proper running;
• Pre-dispense function accelerates collecting speed;
• Connectable with the vehicle detector to achieve card issuing and “one car, one card”;
• Automatic buzzer alarm supported;
• Provide both RS232 and I/O voltage control interface;
• Microprocessor-based electronics;
• SMD low consumption electronic circuits;
• Industrial design, stainless steel material used;
• Hardware watchdog and embedded OS;
• Stoppage, fault, buzzer alarm;
• Avoiding collection by mistake and preventing insert cards from continuously
• Enable and Open signal supplied for Host PC;
• Single motor, lower cost

2. Main Technical Data

• Operating voltage: 24V DC (max 2A, static current 0.1A)
• Operating temperature: -30℃ to 85℃
• Operating humidity: 30-90% (comparatively)
• Use condition: install in bin
• Card available: Width: 54+/-0.5mm

                          Length: 85+/-0.5mm

                          Thickness: 0.3-2.5mm (adjustable)

• Card material: Paper or Polyester card
• Net weight: 2.0kg (including the briquette)
• Time of collecting: 2s

3. Control Interface

  3.1  TTL Control Interface(CN3)

3.2 RS232 Control Interface
