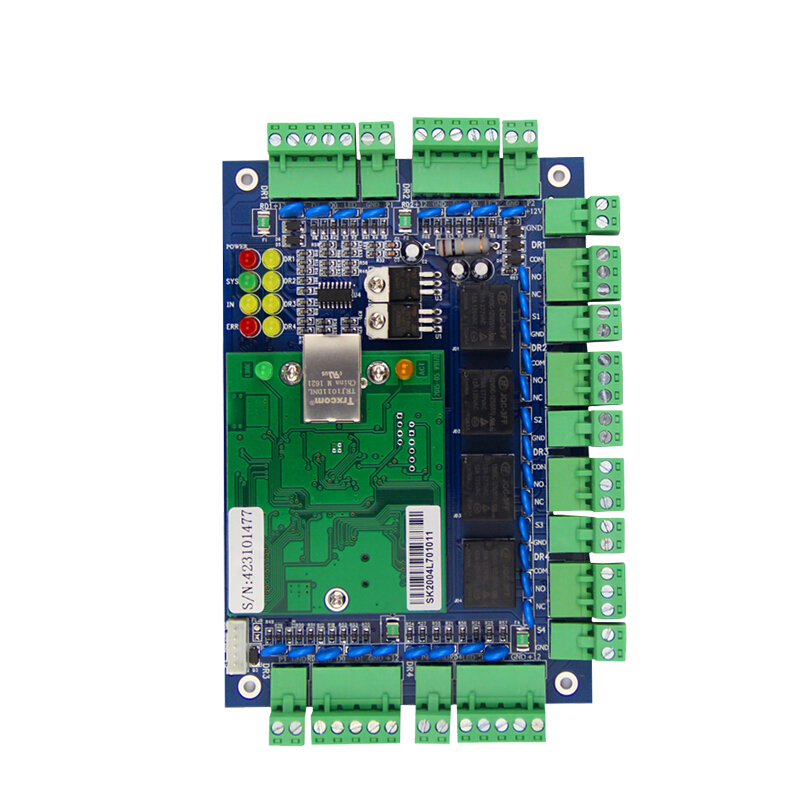

Wiegand 4 Doors IP Access Controller EX-AS04

Wiegand 4 Doors IP Access Controller EX-AS04

Free SDK is available.


Excelsoo Door Access Controllers offer users various functions of access control. With its high adaptability, the device is suitable for a range of different application scenarios and can be integrated with various other devices, such as card readers, locks, or push buttons, to satisfy any user's unique requirements.



  • Can Control 4 doors, open the door by reading card, get outdoor by exit button or by reading card;
  • User capacity: 20,000 user, offline record capacity:100,000;
  • Auto open/close at any pre-set time during any day. Support "who" can enter which door at a certain time, authorized access  control;
  • The record is never lost in case of power failure. High-speed flash memory design, never lost;
  • TCP/IP Network communication;
  • Software supportable database: access & SQL server. Support win7/win8/win10 32/64 bit.



Excelsoo Wiegand TCP/IP Access Controller

Model

EX-AS01

EX-AS02

EX-AS04


Excelsoo Wiegand 1 Doors IP Access Controller EX-AS01

Excelsoo Wiegand 1 Doors IP Access Controller EX-AS01

Excelsoo Wiegand 1 Doors IP Access Controller EX-AS01

Door

1 Door

2 Door

4 Door

Function Description

Wiegand Reader * 2
Door Button * 1
Electric Magnetic Lock* 1

Wiegand Reader * 4
Door Button * 2
Electric Magnetic Lock* 2

Wiegand Reader * 8
Door Button * 4
Electric Magnetic Lock* 4

Communication

TCP/IP

Board Size

160 * 106MM (L*W)

Power

12V DC 3A

Power Consumption

<200mA

Input Reader

Wiegand 26/34 bit

Door Open Delay

1-600S adjustable

Max. QTY in Network

Unlimited

Working Temperature

-40 ~ 70℃

Working Humidity

10-90%RH, No Condensation

User

20000

Offline Record

100000

Power Fail Safeguard

High-speed flash memory design, never lost.

Reader Distance

Max. 100, optimal 80m

Matching Power Box

Model

PBX01


Excelsoo Wiegand 1 Doors IP Access Controller EX-AS01

Size (mm)

280 * 120 * 380 (W*T*H)

Material 1.2mm cold rolled sheet

Power

Input: 100-240V AC, 50/60Hz, 1.0A
Output: 12V DC,  3A

Wiegand 2 Doors IP Access Controller EX-AS02

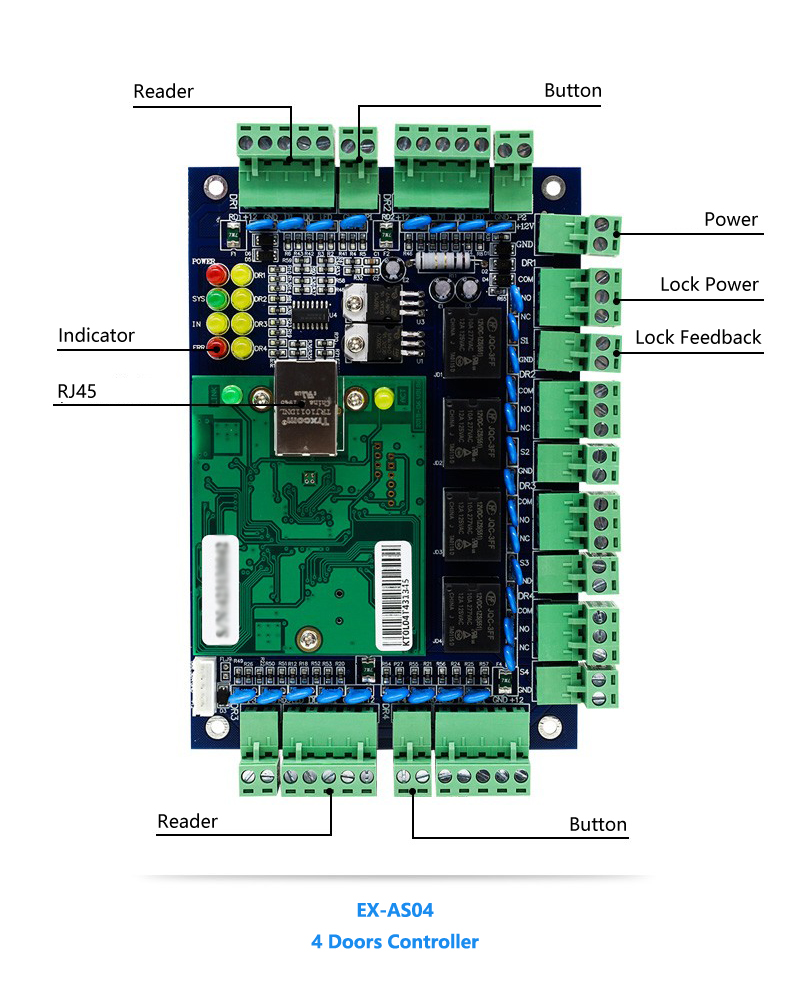

Excelsoo Wiegand 4 Doors IP Access Controller EX-AS04Excelsoo Wiegand 4 Doors IP Access Controller EX-AS04Excelsoo Wiegand 4 Doors IP Access Controller EX-AS04

- Wiegand Reader * 8
- Door Button * 4
- Electric Magnetic Lock* 4
- TCP/IP Network communication
- Door Open Delay: 1-600S adjustable
- User: 20,000
- Offline Record: 100,000
