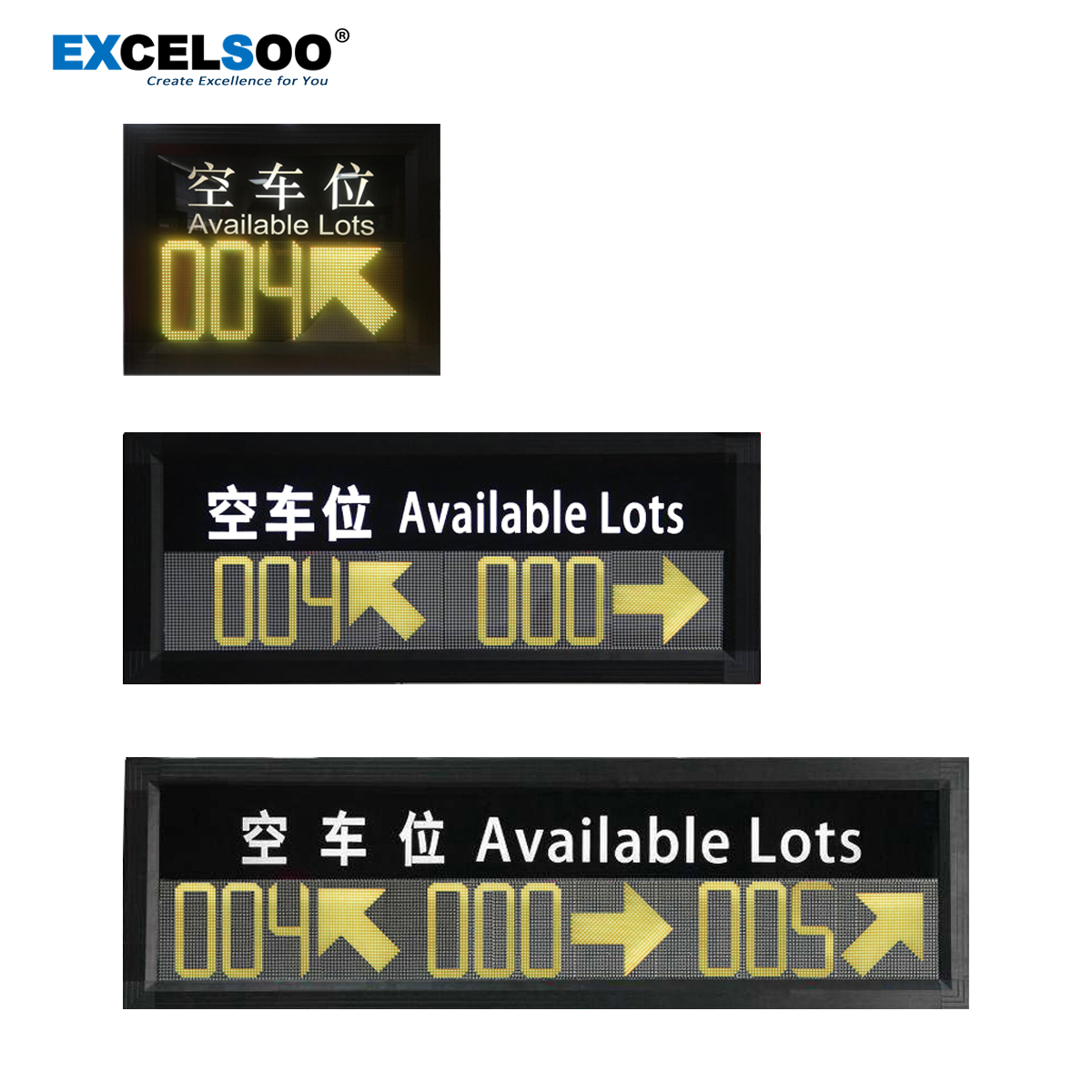

Parking Space Available Signs EX-NED613

Product Introduction:

The Indoor LED Space Available Sign is composed of high-brightness LED modules, drive units, brackets and other parts. It is installed at the important fork in the parking lot. Receive the output information from the Central Control Unit to display the available parking spaces in the area by numbers, arrows, etc. The display will guide the car find the available parking spaces quickly. This will ensure the unblocked flow of the parking lot and the full utilization of the parking spaces.

The three-direction parking space guide display is used for forks with three directions in the parking lot, and displays the available spaces in the area to which the three forks each lead.


Key Features:

• Dust-proof design is used on the LED display shell;
• Plexiglass panel + Aluminum alloy profile, the appearance is simple and Stylish;
• Multi-directional display content to meet the use of various intersections;
• The green arrow is clearly identifiable, the luminous intensity of the lamp beads is high;
• Long visual distance and the wide visual angle;
• Real-time release available parking spaces information, intelligent and active guidance;
• High brightness, wide viewing angle, modular structure, high reliability.

Datasheet:

TCP/IP Indoor Space Available LED Signs
Model	EX-NED611	EX-NED612	EX-NED613
Direction	1 Direction	2 Direction	4 Direction
Size (mm) (L*W*H)	482*102*380	862*102*380	1242*102*380
Communication	Wifi, 4G, TCP/IP, RS485, RS232
Control Board	EX-NED200
Power Supply	AC230V±10%, 50/60Hz
Power	≤10W	≤20W	≤25W
LED Light Source	Highlight LED(Red & Yellow), Viewing angle 120°
Arrow Direction	10 Direction Adjustable
Display Digit	0-999
Shell Material	Aluminum alloy profile
Panel Material	Plexiglass (Text can be customized)
Protection level	IP54
Working Temperature	-30 °C to 60 °C (-22 °F to 140 °F).
Working Humidity	Humidity 95% or less (non-condensing)
Package Size (mm) (H*W*L)	550*125*405	930*125*405	1310*125*405
Package Weight (kg)	5.0	7.0	10.0
Free SDK	Available
OEM/ODM	We welcome all kinds of OEM/ODM. Contact us, as long as you have product needs!
