IP Vehicle Snap Camera NVC-200P
What is NVC-200P?

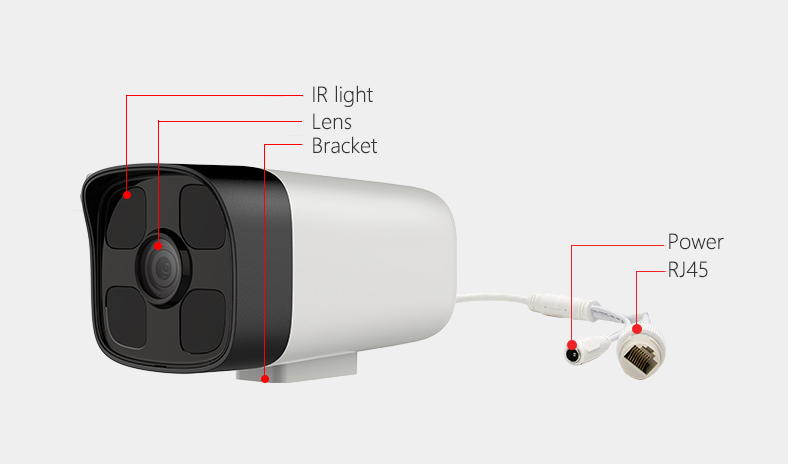

NVC-200P is a POE Camera to snap a vehicle picture when the driver gets in/out the parking to ensure the safety of your vehicle.
SPECIFICATION |
Camera | |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Min. Illumination | Color: 0.01 Lux @(F1.2,AGC ON),0 Lux with IR |
Shutter Speed | 1/3 s~1/100,000 s |
Wide Dynamic | Digital Wide Dynamic Range |
Day & Night | IR cut filter |
Lens | |
Focal Length & FOV | 4 mm, horizontal FOV 86.2°, vertical FOV 46.7°, diagonal FOV 103° |
Aperture | F2.0 |
Lens Mount | M12 |
Illuminator | |
IR Wavelength | 850 nm |
Anti-Overexposure | Yes |
Supplement Light Type | IR |
IR Range | Up to 50 m |
Video | |
Max. Resolution | 1920 × 1080 |
Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Video Compression | Main stream: H.264; Sub-stream: H.264/MJPEG |
H.264 Type | BaseLine Profile/Main Profile |
Network | |
Protocols | TCP/IP |
Image | |
Day/Night Switch | Day, Night, Auto, Schedule |
Image Enhancement | BLC, HLC, 3D DNR |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Interface | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
General | |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup And Operating | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Power Supply | 12 VDC ± 25%, reverse polarity protection PoE:802.3af,Class 3 |
Power Consumption And Current | DC: 12 V,0.42 A,max. 5 W PoE:802.3af,36 V~57 V,0.17 A~0.1 A,max. 6 W |
Shell Material | Front metal, rear plastic |
Screw Material | SUS304 |
Camera Dimension | 87 × 82.8 × 169.9 mm |
Package Dimension | 216 × 121 × 118 mm |
Camera Weight | 350 g |
With Package Weight | 520 g |
Approval | |
Radiation level | Class A |
GB | GB28181 |
Protection | IP67 (IEC 60529-2013) |
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
- Network POE Vehicle Snap Came
- Max. Resolution: 1920 × 1080 @25 fps
- Image Sensor:1/2.7" Progressive Scan CMOS
- High-quality imaging with 2 MP resolution
- SmartIR,Prevent infrared overexposure at night
- BLC, 3D DNR, Digital Wide Dynamic Ran
- Max. Resolution: 1920 × 1080 @25 fps
- Image Sensor:1/2.7" Progressive Scan CMOS
- High-quality imaging with 2 MP resolution
- SmartIR,Prevent infrared overexposure at night
- BLC, 3D DNR, Digital Wide Dynamic Ran
