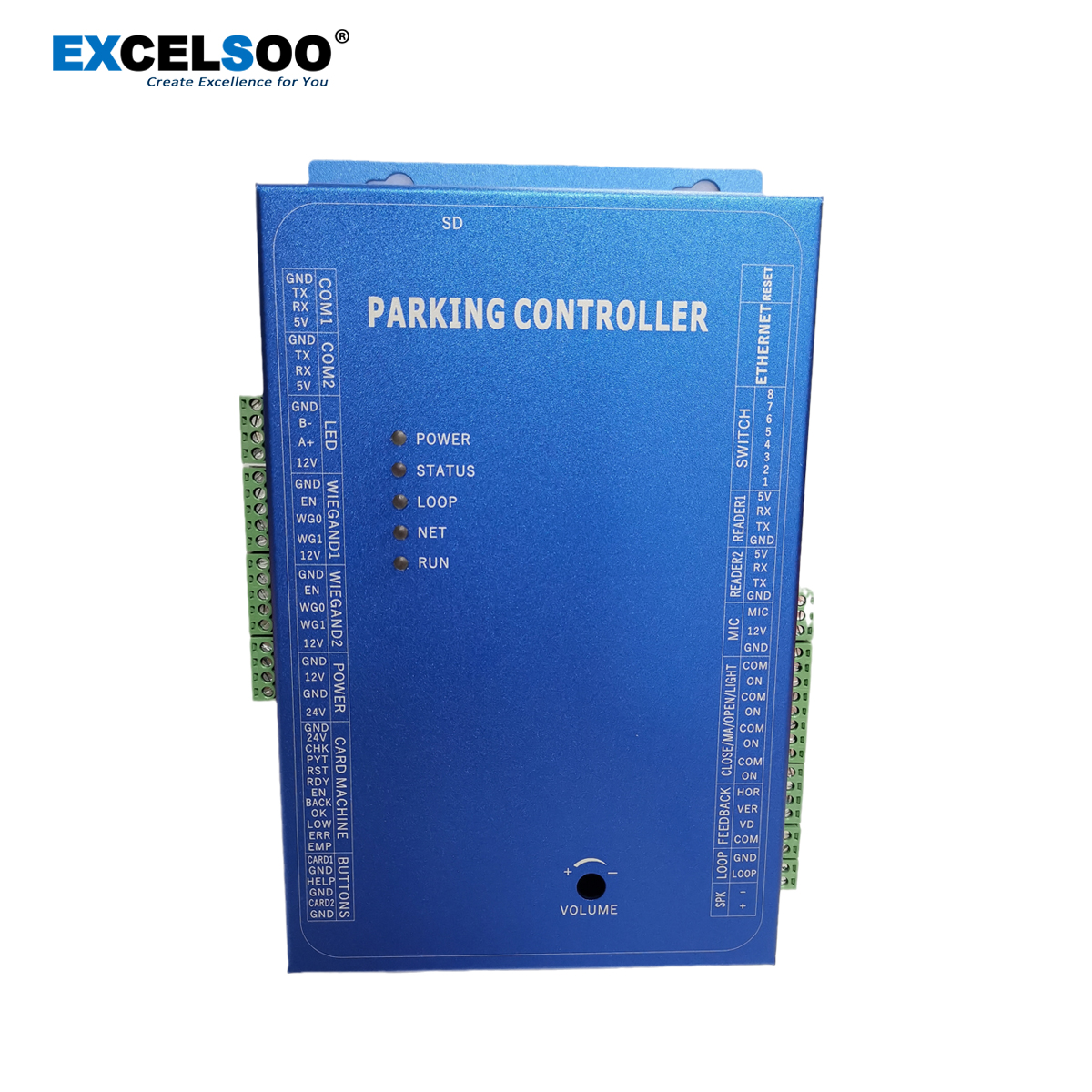

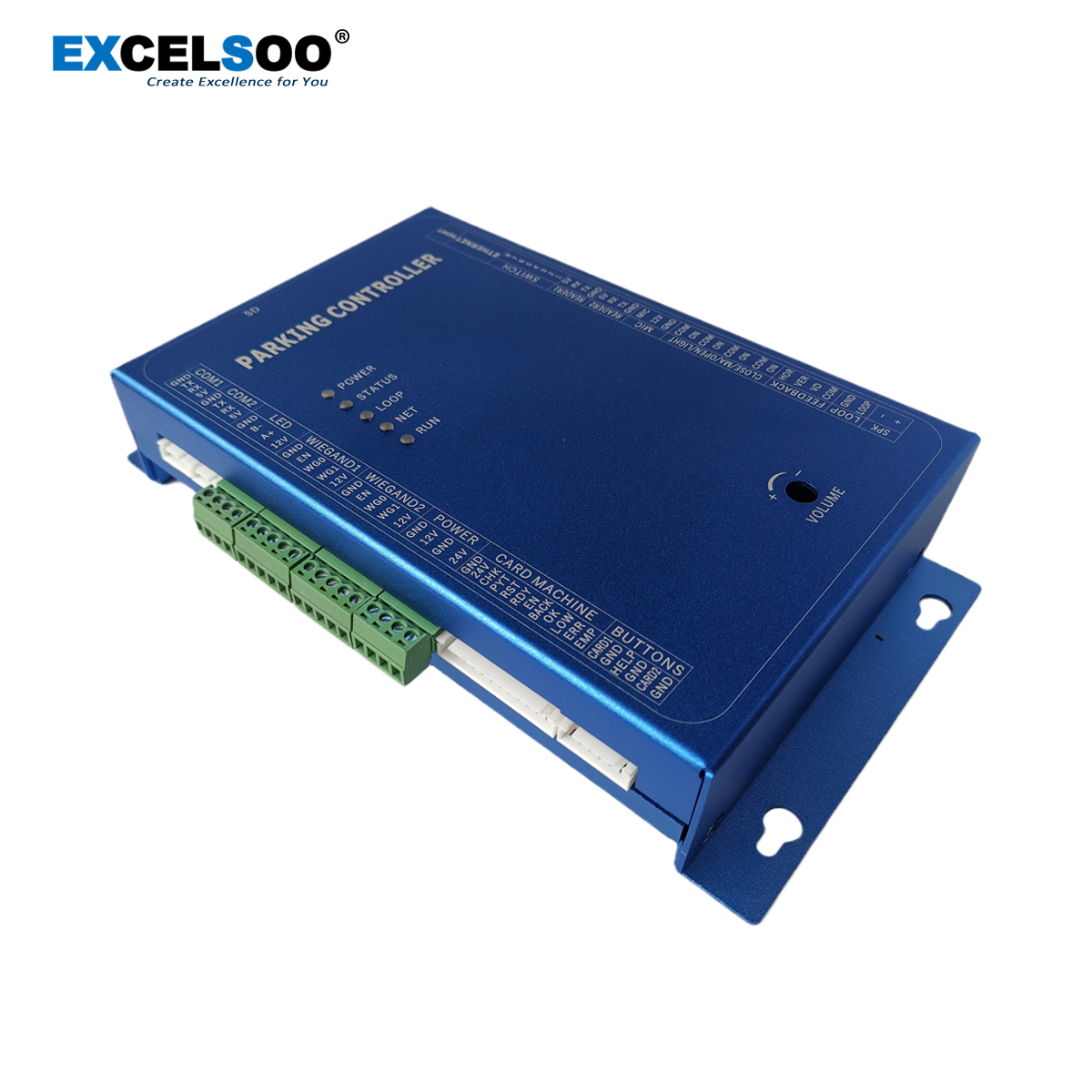

Smart Parking Access Controller XP-300
Smart Parking Access Controller XP-300
TCP Parking Management System Control Terminal
ARM chip, TCP/IP network, and real-time embedded OS, Parking Access Control Unit (ACU) lead the parking system into a new IP digital age. Compared with the traditional RS485 bus, whether communication speed or performance, TCP/IP is a quantum leap.
Description:
Based on a stable and mature data platform, Windows XP\Win7 OS and SQL Server 2000 database, etc. S Series TCP/IP Parking Management System is used to control and monitor the parking access information, vehicle status of entry, or exit, status of barrier gate, and so on.
System designs with two-layer BS/CS architecture,the module of each layer can be updated and replaced separately, which will effectively reduce the cost and simplify the management. At the same time, data processing can be transferred from client to application server and database server, which accommodate large-scale and complicated application requirements.
With powerful data processing functions, various control parameters for parking management can be set, such as RFID card detecting, RFID card extension, picture contrast, etc. Users can inquiry about the vehicle in real-time; different reports can be generated and printed from the system so as to manage the parking lot effectively.
Application:
Residential estate, apartment, office building, shopping mall and so on the unattended car park.
Key Features:
- TCP/IP communication & data transmission;
- 32-bit ARM dual-core processing technology;
- Easy to install, debug and maintain;
- RS232/485, Wiegand 26/34 various RFID interfaces are available in one control board
- Nesting function available;
- Extendible long-distance read function;
- Off-line working available;
- Extendible plate-number identification and auto-printing;
- Automatic card dispenser;
- Multiple charging modes, charging standards can be defined as a user;
- Speaker available
- Flexible system configuration can be extended to multi-level parking lot management system;
- IP44 waterproof, dustproof and rustproof
- Modular structure, high integration
- Wide LED screen show real-time information
- EM/Mifare Proximity card, UHF card available;
- Advertisement function available;
Datasheet:
ELECTRICAL CHARACTERISTICS |
|
• External AC Input Power Voltage: |
230/110V±15% 1.5A 50/60Hz |
• Internal DC Output Power Supply: |
DC 12V/5A for the central control unit |
DC 24V/2A for card dispenser |
|
• Total Power: |
100W |
PHYSICAL CHARACTERISTICS |
|
• S6 Housing Size: S2 Housing Size: |
1380H×480W×260D(mm) 1239H×330W×260D(mm) |
• Housing material: |
Stainless Steel, Tempered Glass |
• Color: |
orange /silvery grey (Optional) |
• Weight: |
Un-equiped - 40kg; Equiped Cabinet - 52kg |
COMMUNICATIONS DATA |
|
• Mode of communication: |
Base TCP/IP, Rear TCP/IP |
• TCP/IP Remote LAN Support: |
YES, supports remote TCP/IP subnet |
• Communications Data Rate: |
≥100.0 Mbps |
• Remote Firmware Upgrade Support: |
YES, CCU (Central Control Unit) firmware may be changed by PC: 64 K with Bootstrap loader and FLASH memory architecture |
• Communication transmission distance |
Unlimited if the LAN is connected by optical fiber |
APPLICABLE CARD |
|
• Reader Interface on CCU |
2 RS-232, 2 Wiegand 26/34 |
• Card Available |
EM4100, Mifare S50/70, 433MHz Bluetooth, 920~928MHz UHF |
• Offline storage capacity |
100,000 pcs (extendible) |
• Card capacity |
30,000 pcs (extendible) |
• Blacklist capacity |
10000 pcs (extendible) |
• Mifare 1 card read/write time: |
≤400ms |
• Mifare 1 card read/write distance: |
≤10cm |
• 125 KHz Proximity card read time: |
≤200ms |
• 125 KHz Proximity card read distance: |
≤10cm |
• Data transmission speed |
4800bps/100M |
ENVIRONMENTAL |
|
• Working Temperature |
minors 30°C to 70 °C |
• Working environments |
indoor, outdoor |
• Relative humidity |
≤95% coagulation free |
- RS232 ports *2, support M1-S50/S70 card reader;
- 1 RS485 port
- 4 relay output ports;
- Support online and offline operation;
- Onboard card number: 25,000;
- Onboard offline records: 80,000;
