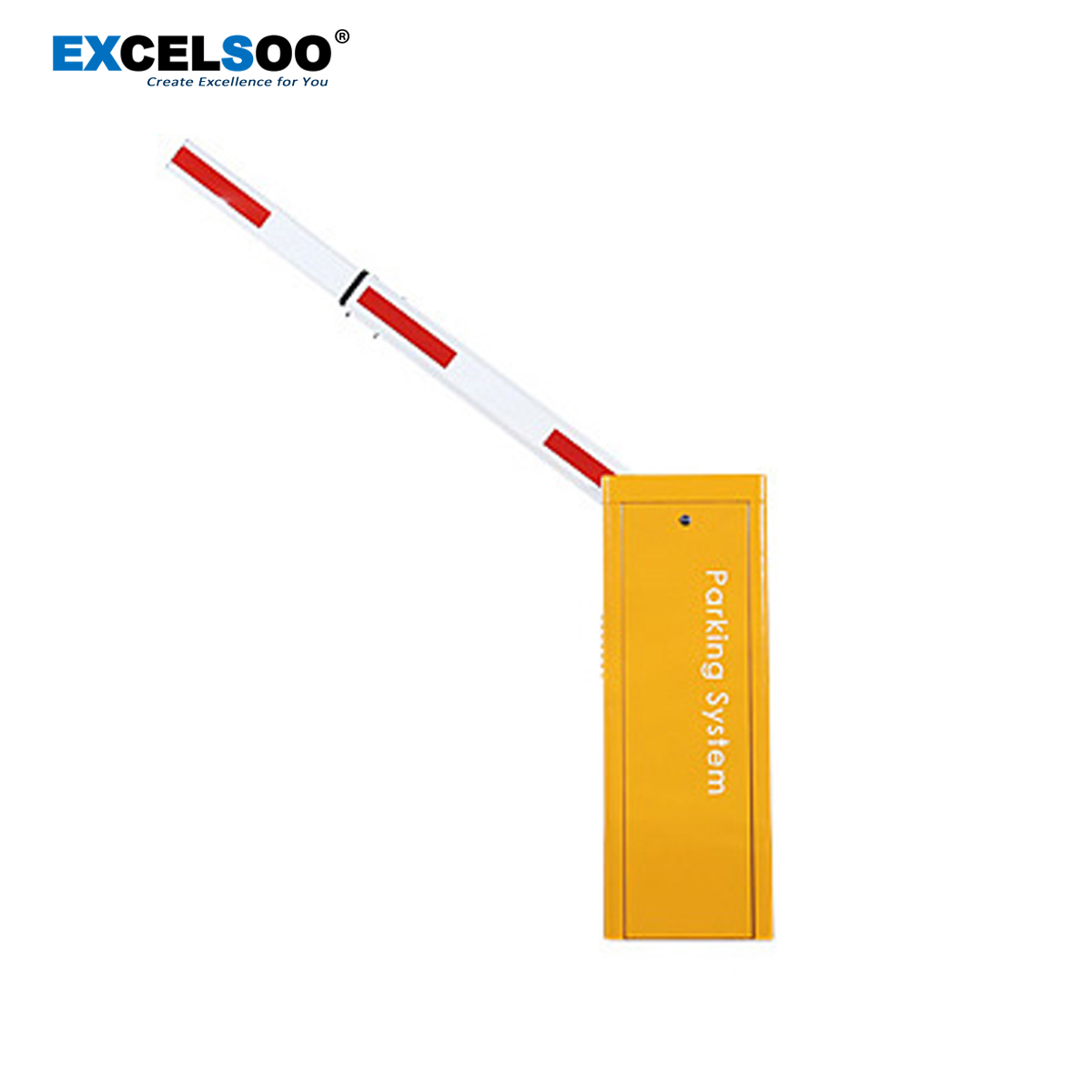

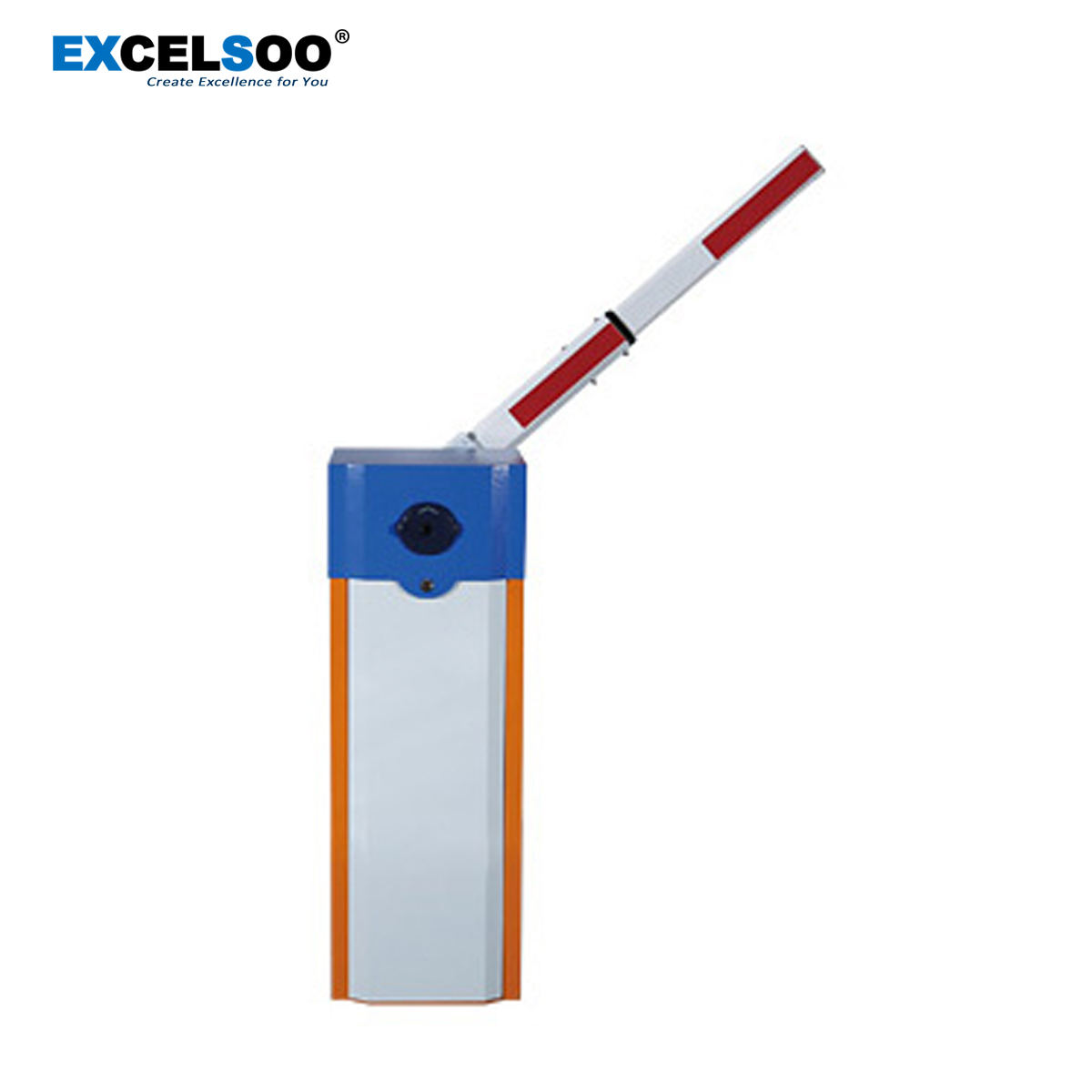

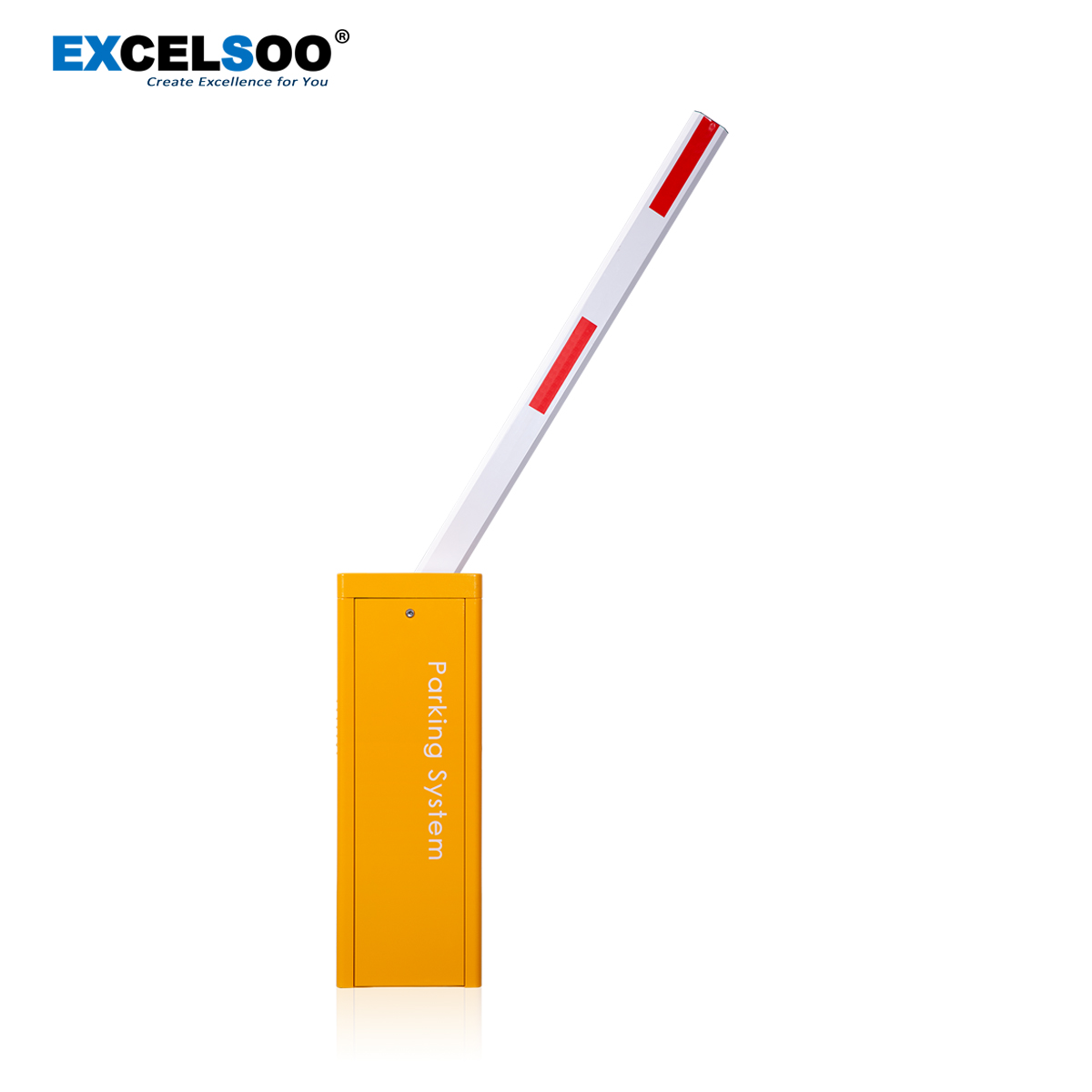

General AC Motor Boom Barrier Gate BR03
General AC Motor Boom Barrier Gate BR03
The EX-BR03 intelligent barrier gate is one type of Excelsoo’s product with the latest technological design to realize automatic and intelligent operation. Furthermore, the unique clutch device and the balance device have made the barrier gate become more reliable.
Functions & Features:
- Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power is on, the motor will work normally.
- Machine core with strong and double springs, make the machine core works more steadily.
- Die-casting aluminum alloy motor, precise and good at thermal radiation.
- Crank and rod structure makes the boom run placidly.
- Double safety limit switches (photoelectricity limit switch and motor memory sensor).
- Reversing on the obstacle.
- Auto-closing.
- Support the infrared photocell for antibumping function (optional).
- Support loop detector (optional).
- R&G light interface (AC220V, can support lamp with 40W).
- Wire control (switch signal)Remote control (418MHZ).
- Digital limit, more precise.
- Open, close control interface for parking system.
- Provide a limit state signal to the parking system.
Technical Data:
Model | EX-BR03 | |||||||
Speed | 3s | 6s | 3s | 6s | 3s | 6s | 6s | 6s |
Arm Type | Straight(Telescopic arm is optional) | 90° folding | 180° folding | 2 fencing | 3 fencing | |||
Max Arm Length | 4.5m | 6m | 3m | 5m | 3m | 5m | 4m | 3.5m |
Arm Dimension | 45*100mm | |||||||
Voltage | AC110/220V ± 10% 50/60Hz | |||||||
Power Consumption | 80W | |||||||
Humidity | ≤90% | |||||||
Working Temperature | -35°C∼+60°C | |||||||
Housing Dimension (W*D*H) |
335*285*925mm | |||||||
Enclosure Rating | IP54 | |||||||
MTBF | 2,500,000 times | |||||||
Net Weight | 40KGS | |||||||
Gross Weight | 45KGS |
- Input Power: AC110/220V ± 10% 50/60Hz
- Running Speed: 3S/6S
- Motor Power: 80W
- Protection Level: IP54
- MTBF:2,500, 000 times
- Weight: 45KG
- Running Speed: 3S/6S
- Motor Power: 80W
- Protection Level: IP54
- MTBF:2,500, 000 times
- Weight: 45KG
