All In One Ultrasonic Sensor EUS-301
All In One Ultrasonic Sensor EUS-301
An important integral part of the parking guidance system
All In One Ultrasonic Sensor is installed right above each parking space. It integrates ultrasonic sensors and indicator lights. The working principle of ultrasonic ranging is used to collect the unoccupied and occupied state information of parking space in real-time, control the indicator light of the parking to display different parking states, and immediately sends the parking state information to the Zone Controller through RS485 networking.

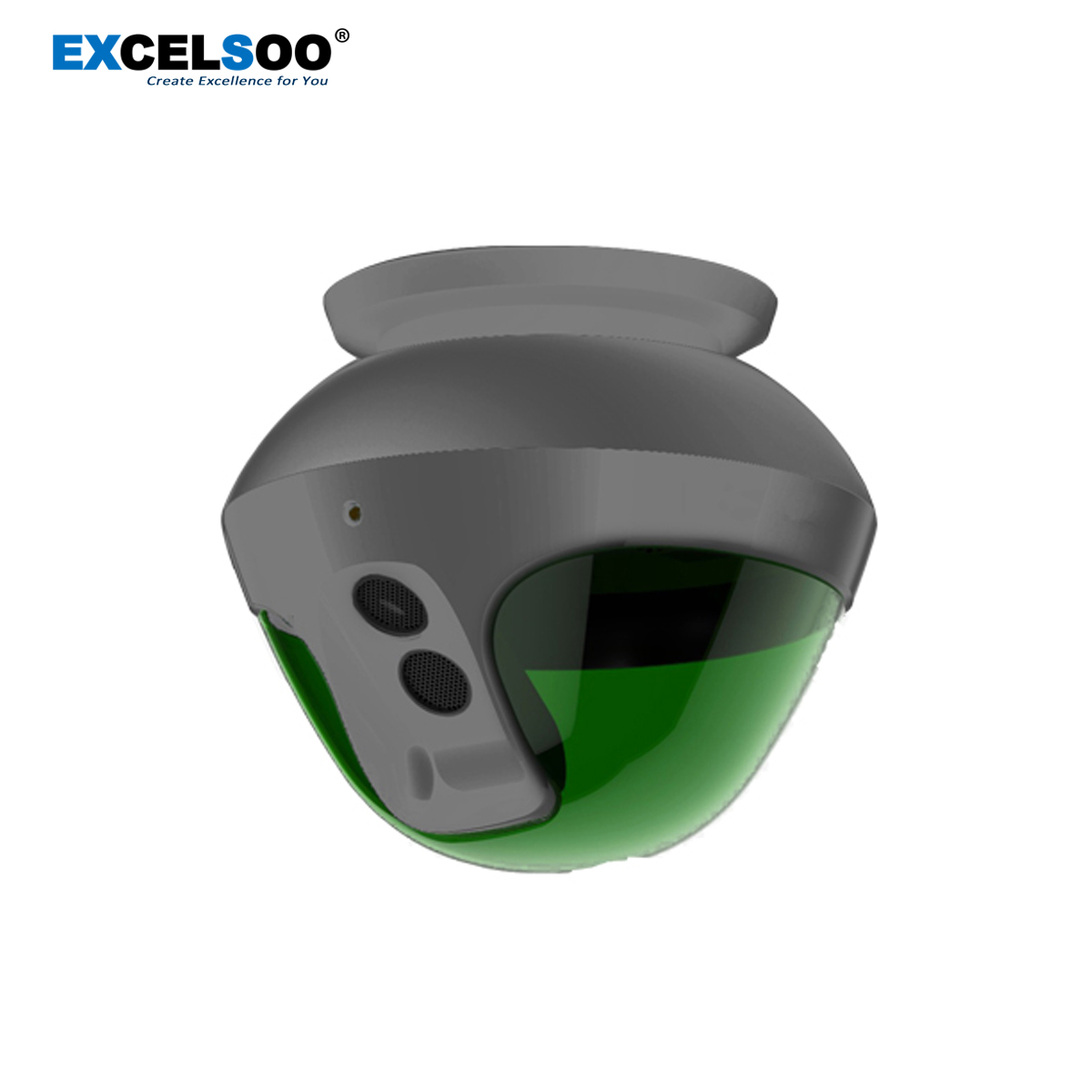

All In One Ultrasonic Sensor is comprised of detector main body and indicator light. The detector's main body is the ultrasonic sensor. It is used to detect the unoccupied and occupied state of parking. The integrated indicator light is used to display different colors according to the command of the detector. When there is no car in the parking space, the indicator light is green. However, when there is a car in the parking space, it is red.
Key Features：
- Industrial grade design;
- Easy to install and adjust;
- Real-time monitoring and output in alarm distance;
- Real-time monitoring parking space status.
Specification：
| Type | EUS-301 |
| Operating Voltage | DC 10~28V (rated 24V) |
| Power Consumption | <1W |
| Working Temperature | -20℃ ~ +65℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Environmental Humidity | 40%~70%RH |
| Dimension | φ126*125mm |
| Net Weight | 180g |
| Appearance Material | Grey ABS engineering plastics |
| Communication Mode | RS485 |
| Communication Interface | 2 RJ45 ports |
| Communication Distance | ≤300m (CAT5 network cable) |
| Supply Power Distance | ≤150m (CAT5 network cable) |
| Response Time | 5s~10s |
| Type Of The Indicator Light | Red and green two-tone high-light LED |
| Installation Location | Horizontal 0~0.5m |
| Vertical 2 ~ 3m（advised 2.2-2.8m） | |
| Ranging Error | 2cm |
| Detection Accuracy | >99.9% |
- Communication: RS485;
- Communication interface: 2 RJ45 ports;
-Detection accuracy: ≥99.9%;
