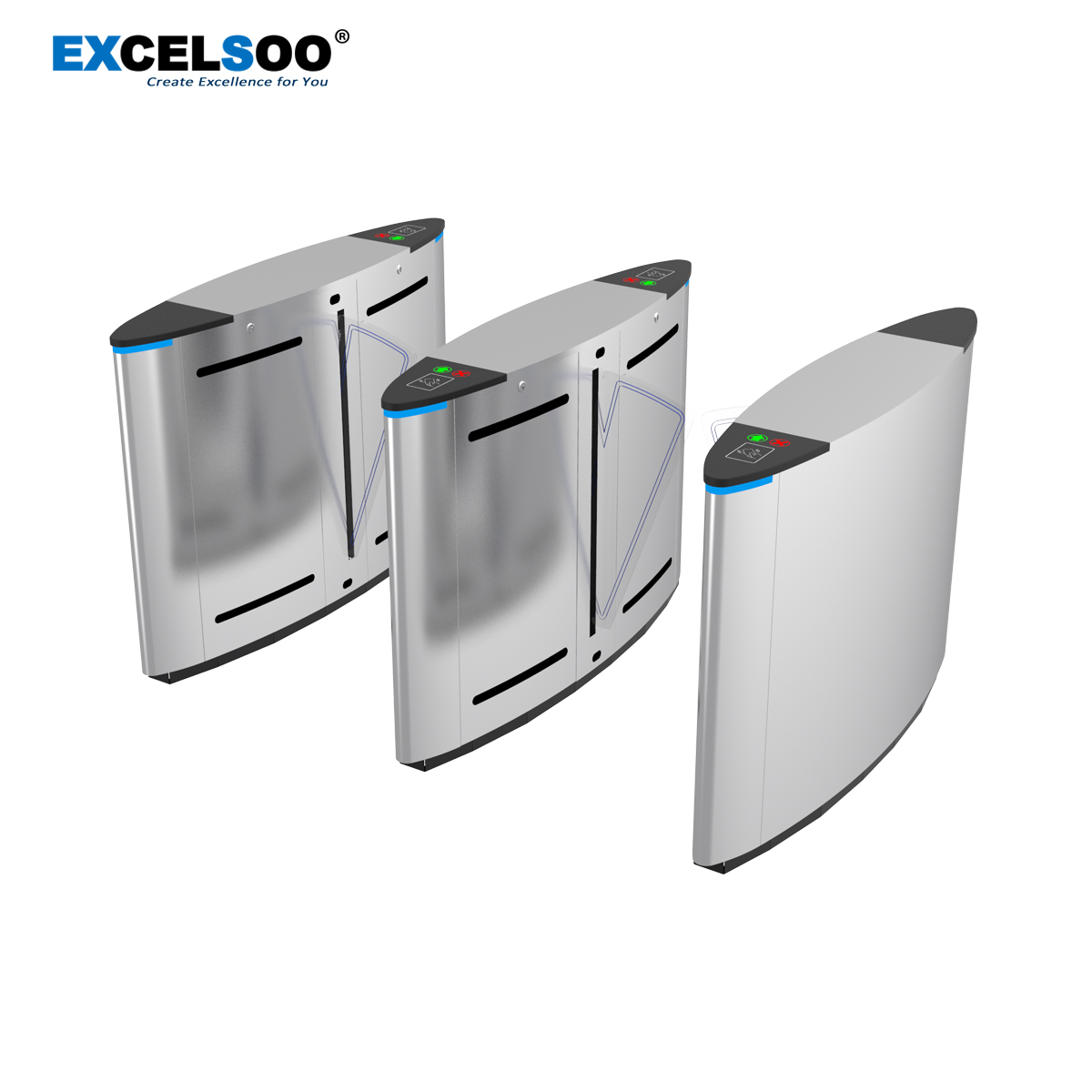

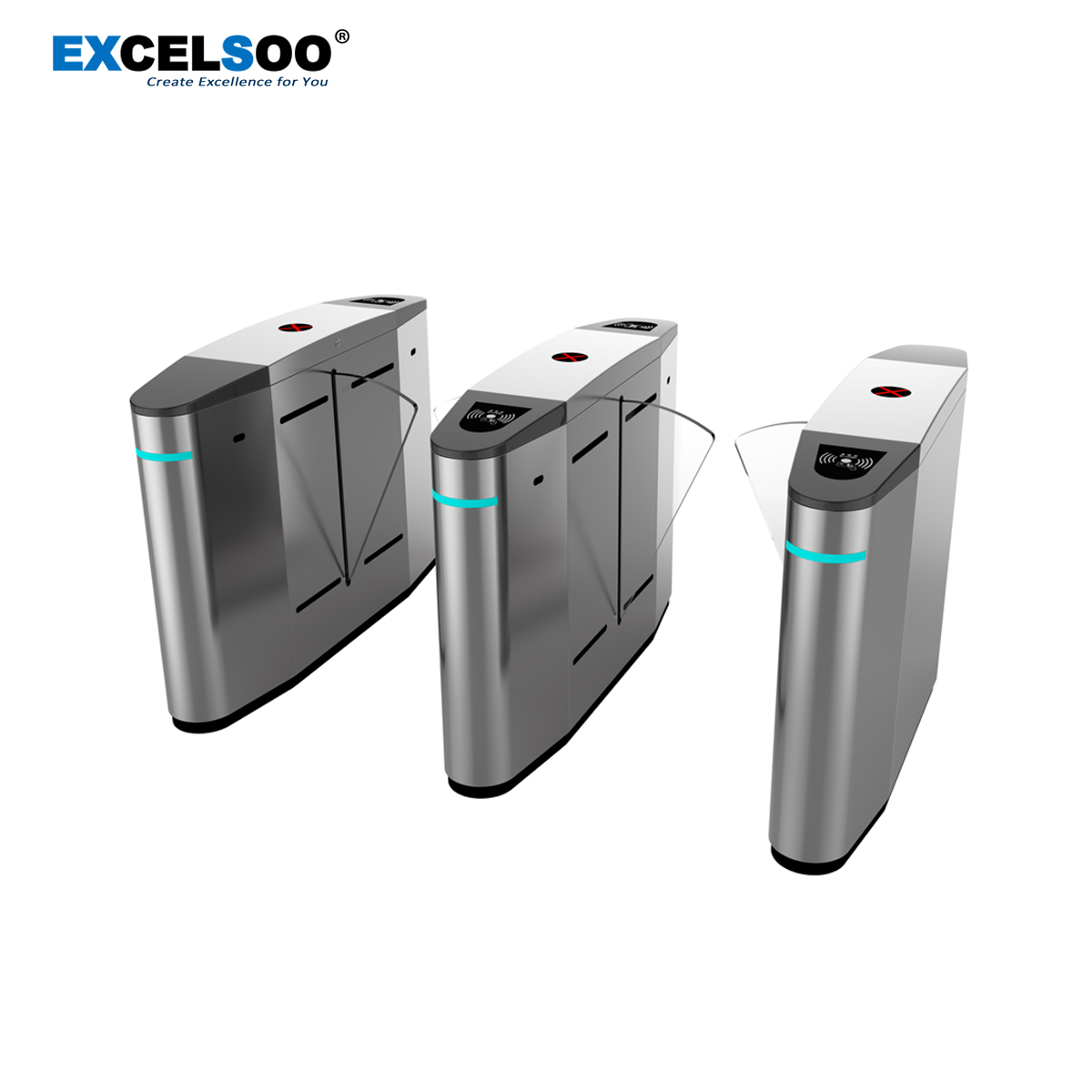

Excelsoo Smart Flap Barrier FLPB312

Excelsoo Smart Flap Barrier FLPB312

A leading brand tripod turnstile gate systems manufacturer supplier in China.


All Excelsoo turnstile models are space-efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries. The unique dropping arm feature provides a fail safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble-free passages. The turnstile creates a secure environment in. for example, a reception area. Our turnstiles are used in different applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection, and lobby access control.




  • Single passage in the set direction;
  • Bi-directional single passage;
  • Free passage in the set direction;
  • Always free or locked;




  • Housing: In stainless steel AISI 304 or AISI316.
  • Barrier arm- stainless steel bar.





  • Use of RFID IC cards, ID cards, Barcode or magnetic cards as an automatic identification system and achieve access attendance, fees, or function;
  • A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in the smooth passage;
  • Semi-auto mode: After reading the card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position;
  • Full-auto mode: The passenger pushes the arm at a little strength after reading the card, and the arm will automatically rotate forward by motor power until the arm arrives in home position;
  • Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers;
  • Single or bi-directional function in mechanical and electrical versions;
  • Automatic reset of barrier arms after each passage;
  • Cable or wireless remote control panel key override control for emergency situations. Automatically arm drops down when power off or emergency;
  • Adjustable time-out delay.




Material  1.2/2.0mm SUS304
Size  1410*300*990mm
Sensor Pairs  5
Pass Rate  35p/m
Pass Width  ≤550mm
Input Voltage  100V-240V
Motor Type  24V DC Brushed Motor
Environment  -20°C+70°C
Motor Power  20W
Input Signal  Dry contact/RS485

智能直面圆弧灯光翼闸 FLPB312

智能直面圆弧灯光翼闸 FLPB312智能直面圆弧灯光翼闸 FLPB312

智能直面圆弧灯光翼闸 FLPB312智能直面圆弧灯光翼闸 FLPB312

- Unlock Time: 0.2s
- Pass Rate: 35 person/min
- Pass Width: ≤550mm
- Size: 1410x340x1005mm
