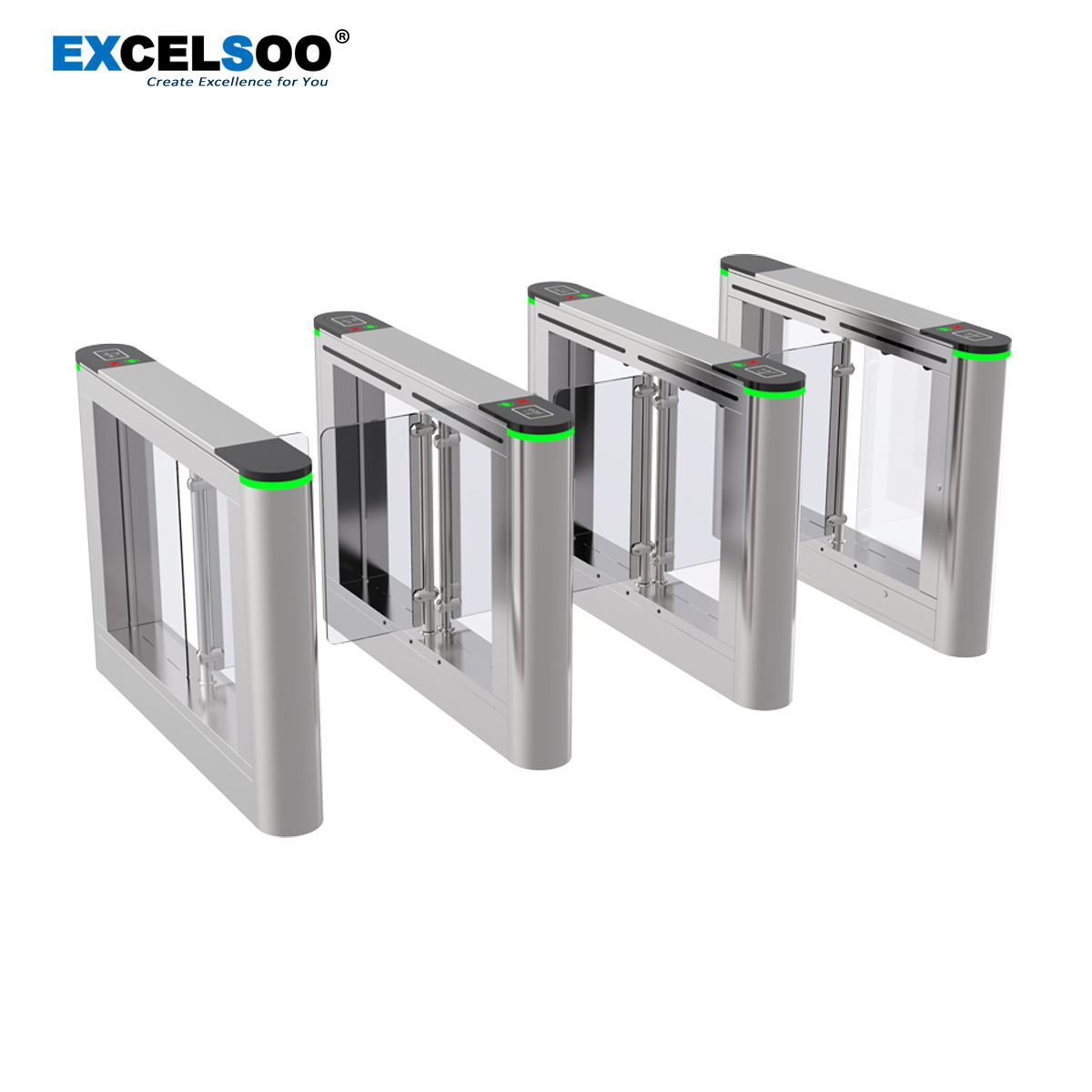

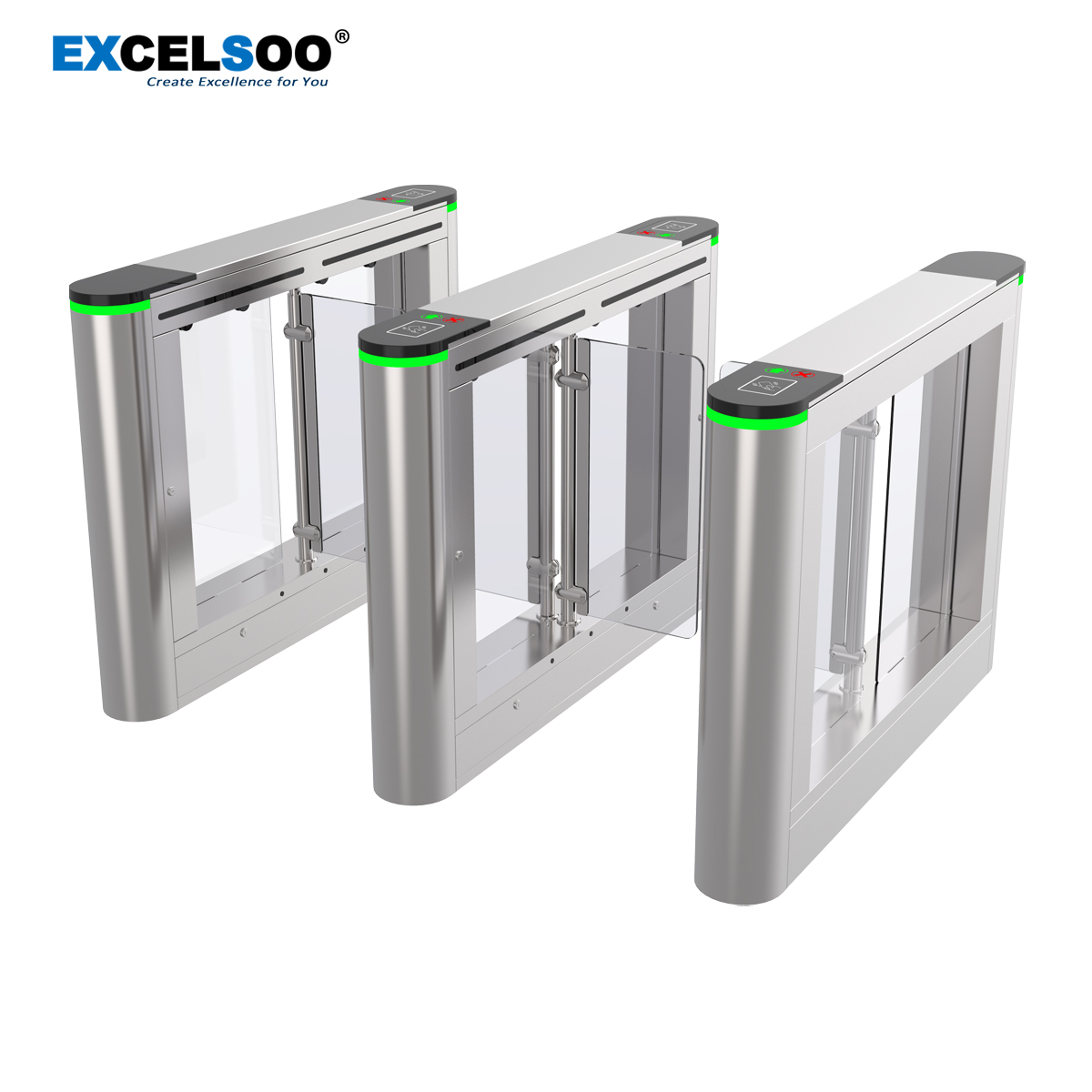

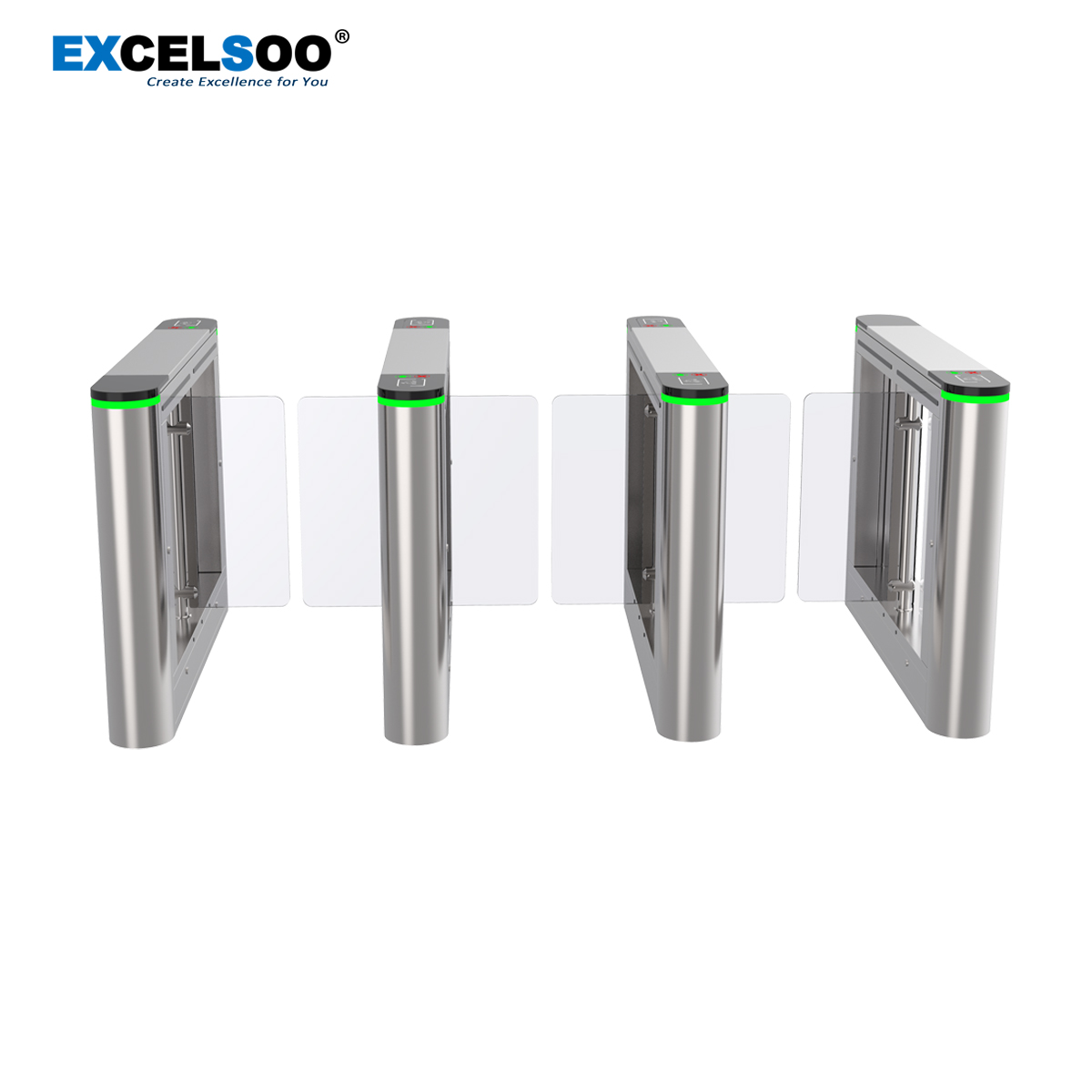

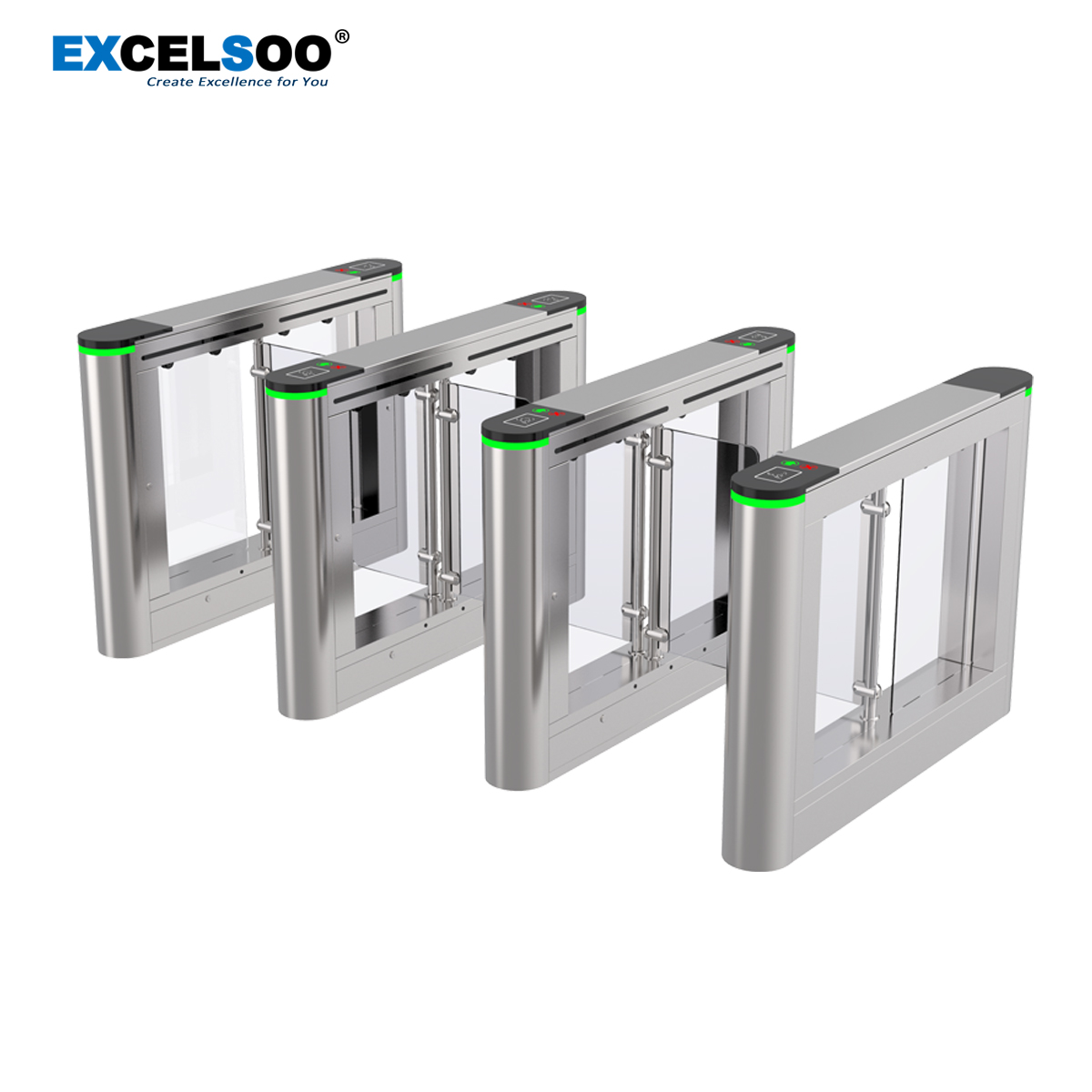

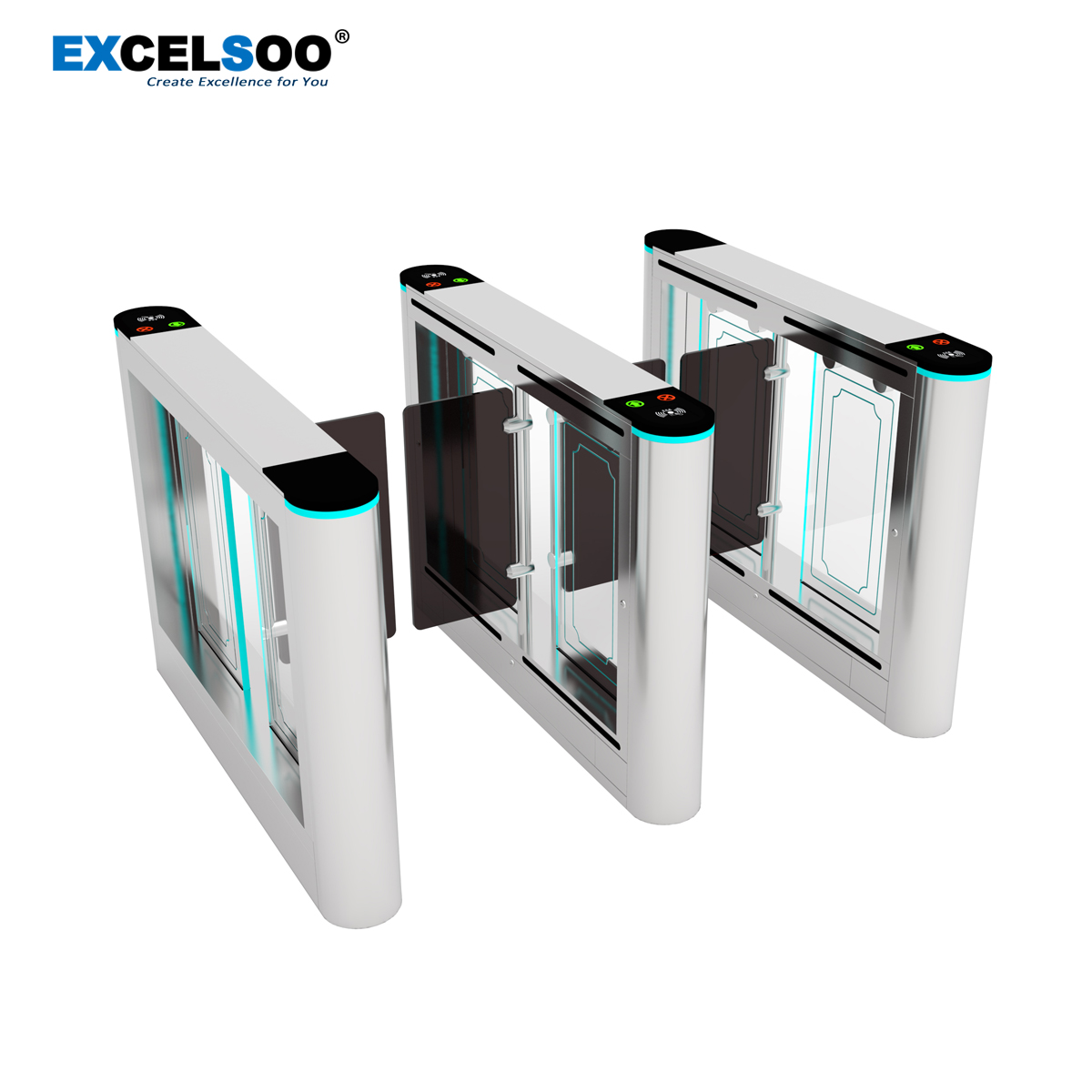

Excelsoo Luxury Swing Barrier SWGB312
Excelsoo Luxury Swing Barrier SWGB312 for CBD Office Building
A leading brand tripod turnstile gate systems manufacturer supplier in China.
The plasticity of the appearance shape of the SWGB312 Swing Gate is the strongest among all the gates. The material of the barrier body is rich, and the shape of the box body is also diversified. It is easy to design a very beautiful shape, so it is often used in office buildings, smart buildings, clubs, etc. Luxury occasions.
OPERATING MODES:
- Single passage in the set direction;
- Bi-directional single passage;
- Free passage in the set direction;
- Always free or locked;
MATERIALS:
- Housing: In stainless steel AISI 304 or AISI316.
- Barrier arm- stainless steel bar.
FEATURES AND BENEFITS:
- Use of RFID IC cards, ID cards, Barcode or magnetic cards as an automatic identification system and achieve access attendance, fees, or function;
- A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in the smooth passage;
- Semi-auto mode: After reading the card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position;
- Full-auto mode: The passenger pushes the arm at a little strength after reading the card, and the arm will automatically rotate forward by motor power until the arm arrives in home position;
- Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers;
- Single or bi-directional function in mechanical and electrical versions;
- Automatic reset of barrier arms after each passage;
- Cable or wireless remote control panel key override control for emergency situations. Automatically arm drops down when power off or emergency;
- Adjustable time-out delay.
Specification:
Wing Panel | 10mm clear acrylic |
Filling Panel | 6mm clear acrylic |
Mechanism Molded | Molded mechanism for swing barrier gate |
Infrared Sensor | 2 pairs metal infrared +3 pairs button infrared |
Inductor | Limit switch |
Indicator | Square lamp + RGB layer |
Communication Interface | Dry contact/RS485 |
Control System | Control panel + network panel+ power supply |
Size | 1400*185*1020 mm |
Flow Rates | 35p/m |
Motor | Brush DC Motor 30K 20W |
Pass Width | 600mm |
Power Supply | 24V 150W |
Operating Temperature | -20℃ ~+70℃ |
Material | SUS 304 1.5/1.2mm |
- Unlock Time: 0.2s
- Pass Rate: 35 person/min
- Pass Width: ≤600mm
- Size: 1400*185*1020mm
- Pass Rate: 35 person/min
- Pass Width: ≤600mm
- Size: 1400*185*1020mm
