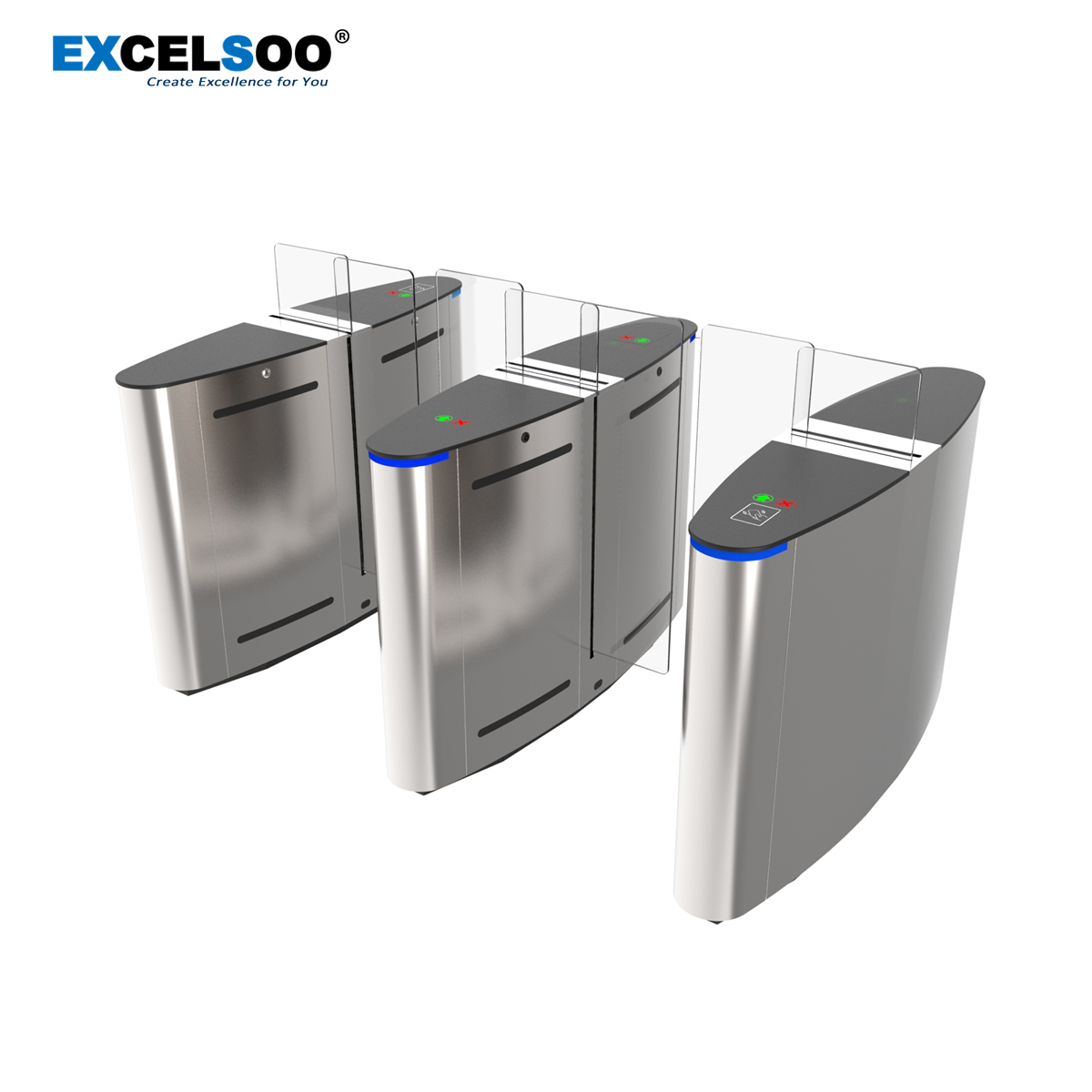

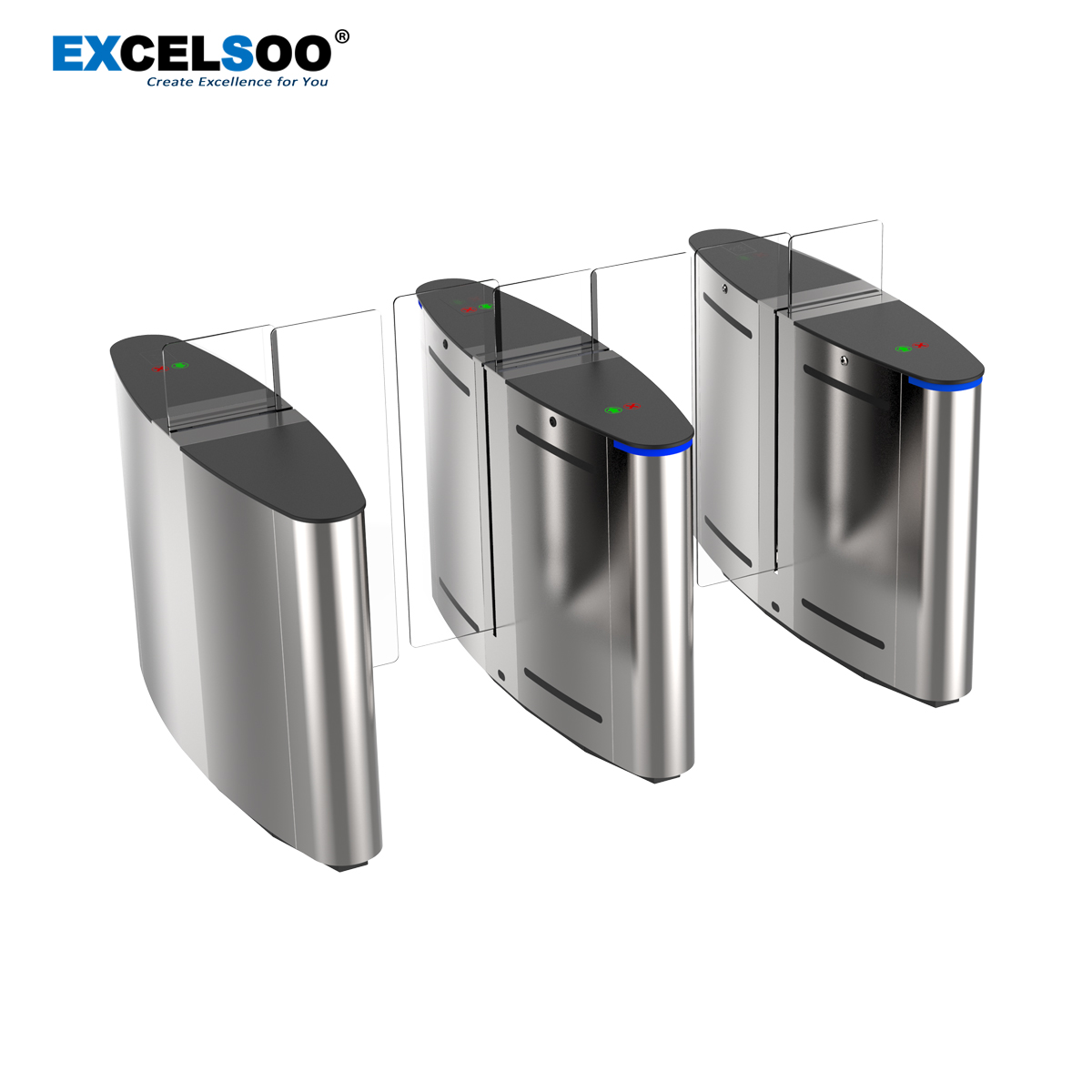

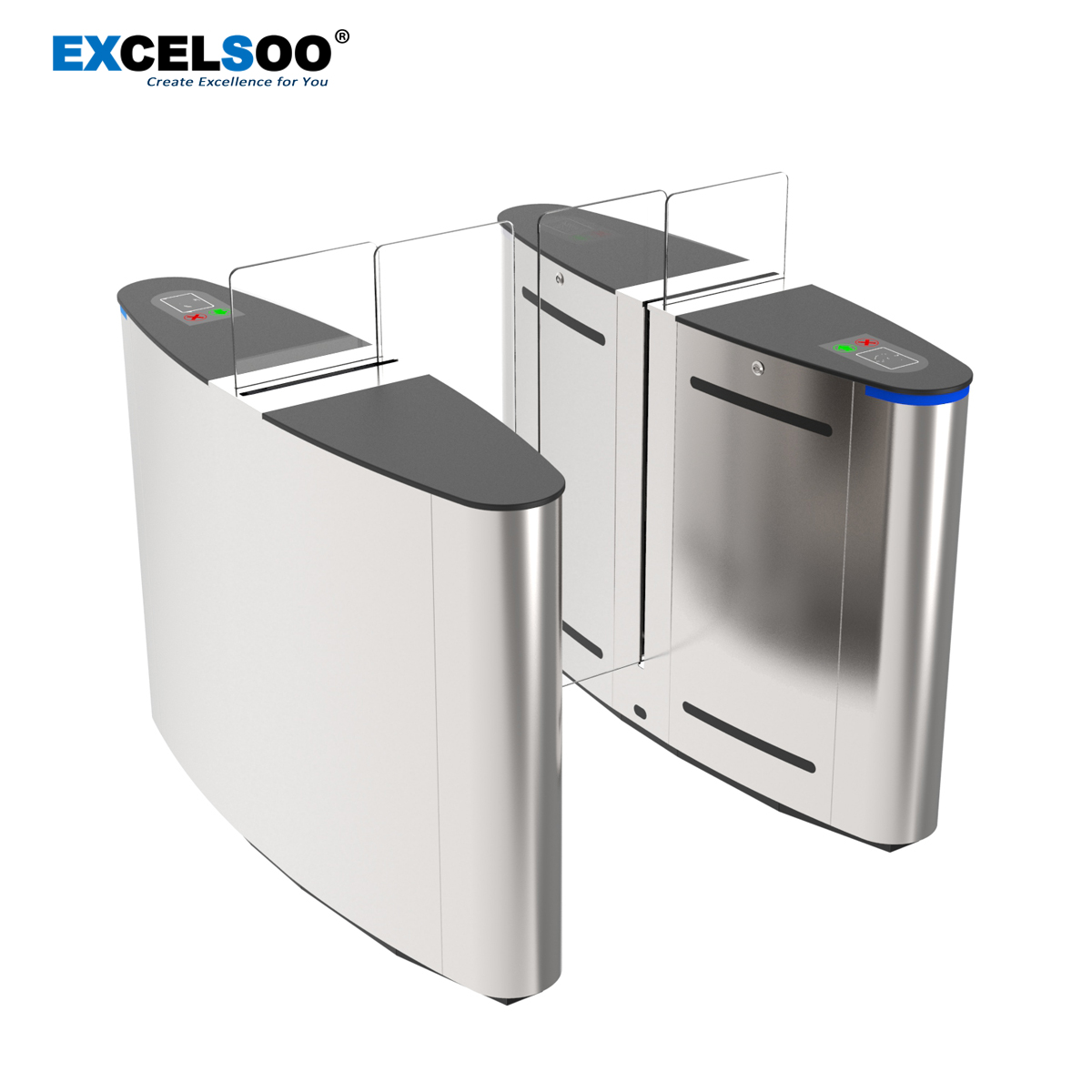

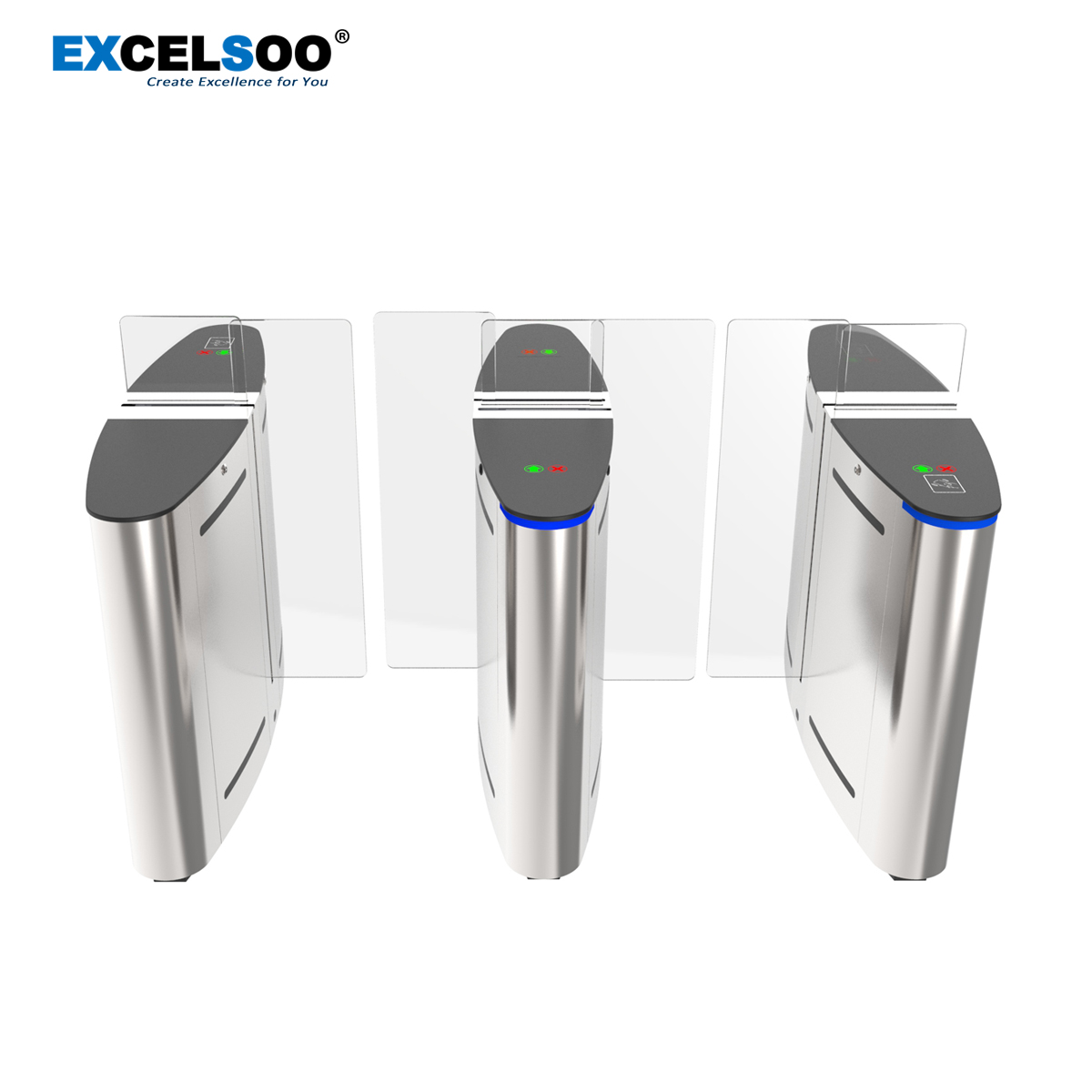

Excelsoo Smart Sliding Barrier SLDB320

Excelsoo Smart Sliding Barrier SLDB320

A leading brand tripod turnstile gate systems manufacturer supplier in China.



The SLDB320 Smart Sliding Barrier is a high-tech product for intelligent management of personnel passages. It is an upgraded product of the intelligent swing gate. The product has fine processing, complete functions, and high grade. The identity recognition technology is organically integrated, which is convenient to be compatible with the use of card reading recognition equipment such as IC cards, ID cards, barcode cards, fingerprints, etc., through the selection of various identity recognition system equipment and the use of reliable safety protection devices, alarm devices, Direction indication, etc., coordinate to realize intelligent control and management of the channel, etc.

The main function: Open the barrier automatically when the power is off to meet the needs of the fire emergency.



OPERATING MODES:



  • Single passage in the set direction;
  • Bi-directional single passage;
  • Free passage in the set direction;
  • Always free or locked;



MATERIALS:



  • Housing: In stainless steel AISI 304 or AISI316.
  • Barrier arm- stainless steel bar.





FEATURES AND BENEFITS:



  • Use of RFID IC cards, ID cards, Barcode or magnetic cards as an automatic identification system and achieve access attendance, fees, or function;
  • A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in the smooth passage;
  • Semi-auto mode: After reading the card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position;
  • Full-auto mode: The passenger pushes the arm at a little strength after reading the card, and the arm will automatically rotate forward by motor power until the arm arrives in home position;
  • Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers;
  • Single or bi-directional function in mechanical and electrical versions;
  • Automatic reset of barrier arms after each passage;
  • Cable or wireless remote control panel key override control for emergency situations. Automatically arm drops down when power off or emergency;
  • Adjustable time-out delay.



Specification:



Technical Data Unit SLDB320
Passage Width mm ≤550
Throughput Rate p/m 35
Power Supply V/(AC) 100-240
Operational Voltage V/(DC) 24
Max Power Consumption W 35
Frequency Hz 50-60
Protection Level IP >44
Working Temperature -25 to +70
Dimension Excluding Bars mm 1400*300*980
Net Weight Including Bars Kg 140



Excelsoo Smart Sliding Barrier SLDB320 Excelsoo Smart Sliding Barrier SLDB320 Excelsoo Smart Sliding Barrier SLDB320

- Unlock Time: 0.2s
- Pass Rate: 40 person/min
- Pass Width: ≤550mm
- Size: 1400x300x980mm
