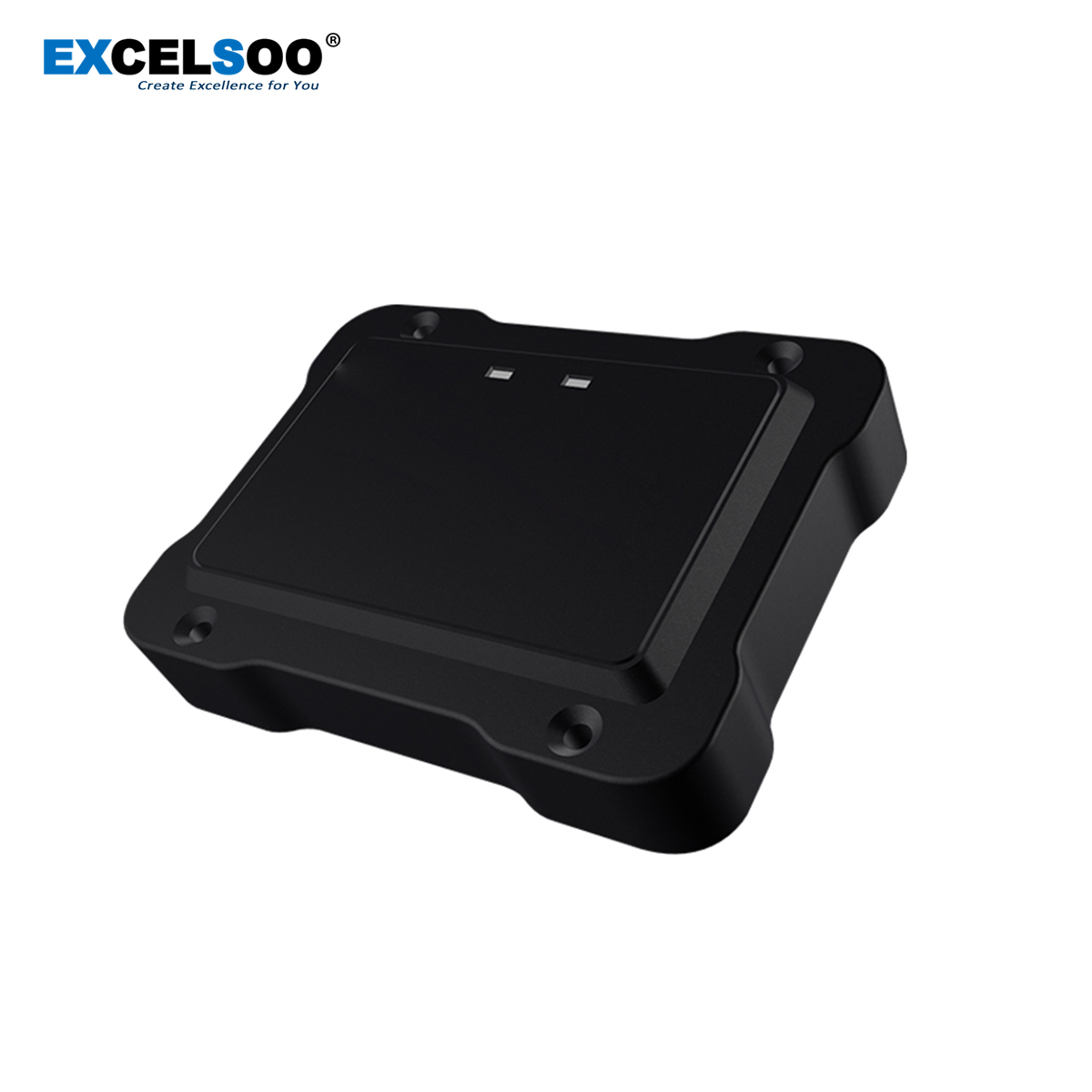

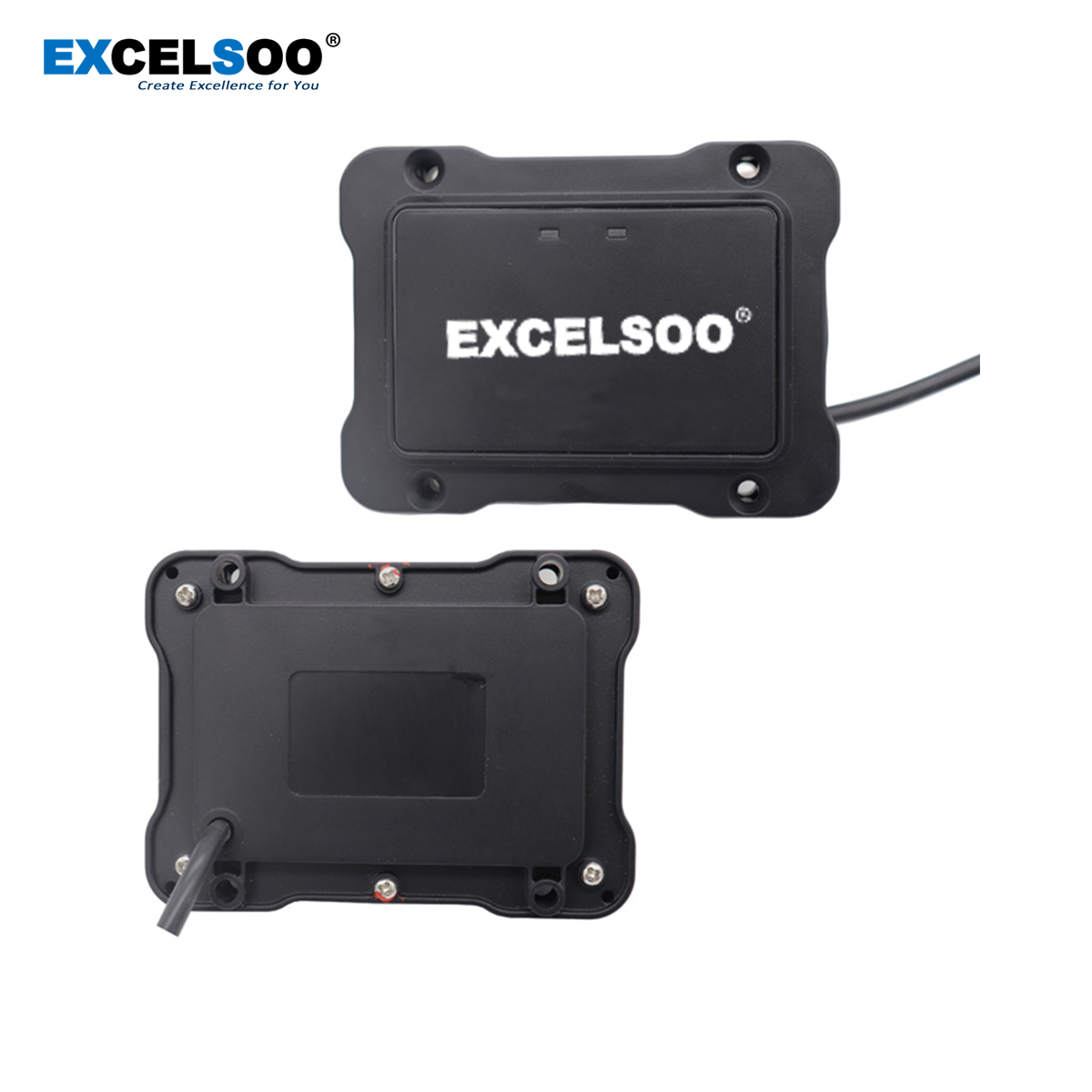

Radar Vehicle Detector for Boom Barrier Gate EX-RD01
Radar Vehicle Detector for Boom Barrier Gate EX-RD01
A leading brand tripod turnstile gate systems manufacturer supplier in China.
The EX-RD01 Millimeter-wave Radar Vehicle Detector for Boom Barrier Gate is the latest model of vehicle detector developed by Excelsoo with microwave broadband technology and high-speed digital signal processing technology. It is used for the control and management of vehicle entrance and exit barriers or pedestrian access doors to replace traditional loop vehicle detectors or infrared sensors.
It can avoid the phenomenon of vehicles following the car and pedestrians being smashed, and ensure the reliable landing of the barrier arm or the normal closing of the pedestrian access doors. It is suitable for the supervision and detection of vehicles at the entrances and exits of parking lots or underground garages and toll stations. It is an indispensable and important component of an intelligent parking system and a toll system!
EX-RD01 Radar Vehicle Detector includes two specifications: EX-RD01 and EX-RD01S.
EX-RD01: Dry contact * 1;
EX-RD01S: Dry contact * 2, RS485/RS232 bus *1.
| Specifications | |
| Center Frequency: | 24 GHz; |
| Vertical Beam Width: | 43°; |
| Horizontal Beam Width: | 11°; |
| Coverage Range: | 0 m～6 m; |
| Distance Adjustment Range: | 2.0 m～6 m (8 levels); |
| Response Time: | 100ms; |
| Signal Output: | Dry contact. |
| Detection Accuracy | |
| Vehicle Inspection Miss Rate: | 0.1%; |
| Pedestrian Detection Miss Rate: | 0.1%; |
| False Detection Rate: | 0.05%. |
| Mechanical properties | |
| Dimensions: | 105 mm×78 mm×26 mm; |
| Weight: | 85g; |
| Waterproof: | IP65 |
| Power Supply | |
| Voltage Range: | DC 6V～18V |
| Current: | less than 90 mA/12V. |
| Working Environment | |
| Operating Temperature: | -40℃～+85℃; |
| Humidity: | Relative humidity 99% at 25℃. |
| Reliability | |
| The equipment can work continuously day and night under the specified conditions, and the Mean Time between Failure (MTBF) meets: MTBF≧15000 h. |
- Coverage Range: 0 m～6 m;
- Distance Adjustment Range: 2.0 m～6 m (8 levels);
- Response Time: 100ms;
- Signal Output: Dry contact；
- Vertical Beam Width: 43°;
- Horizontal Beam Width: 11°.
