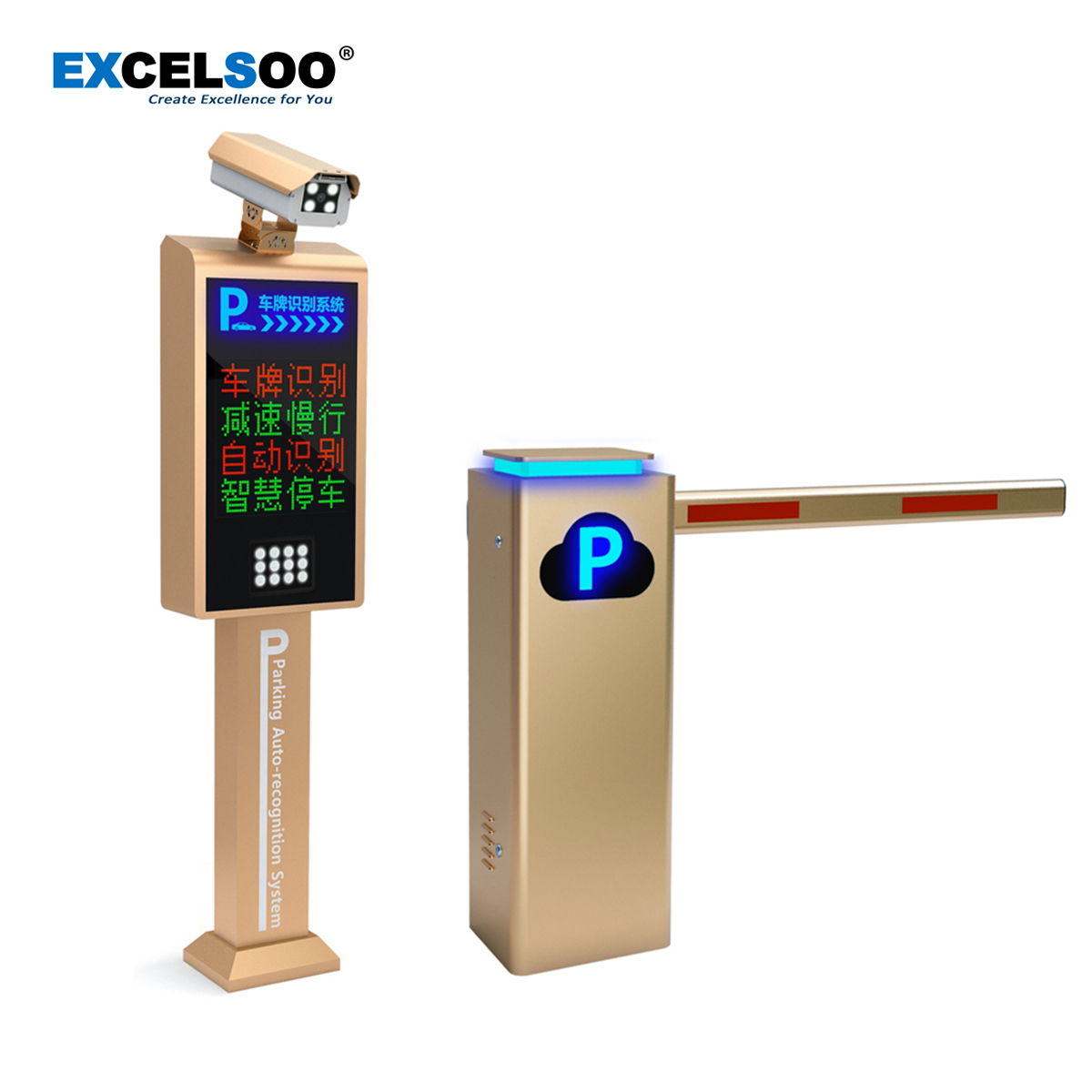

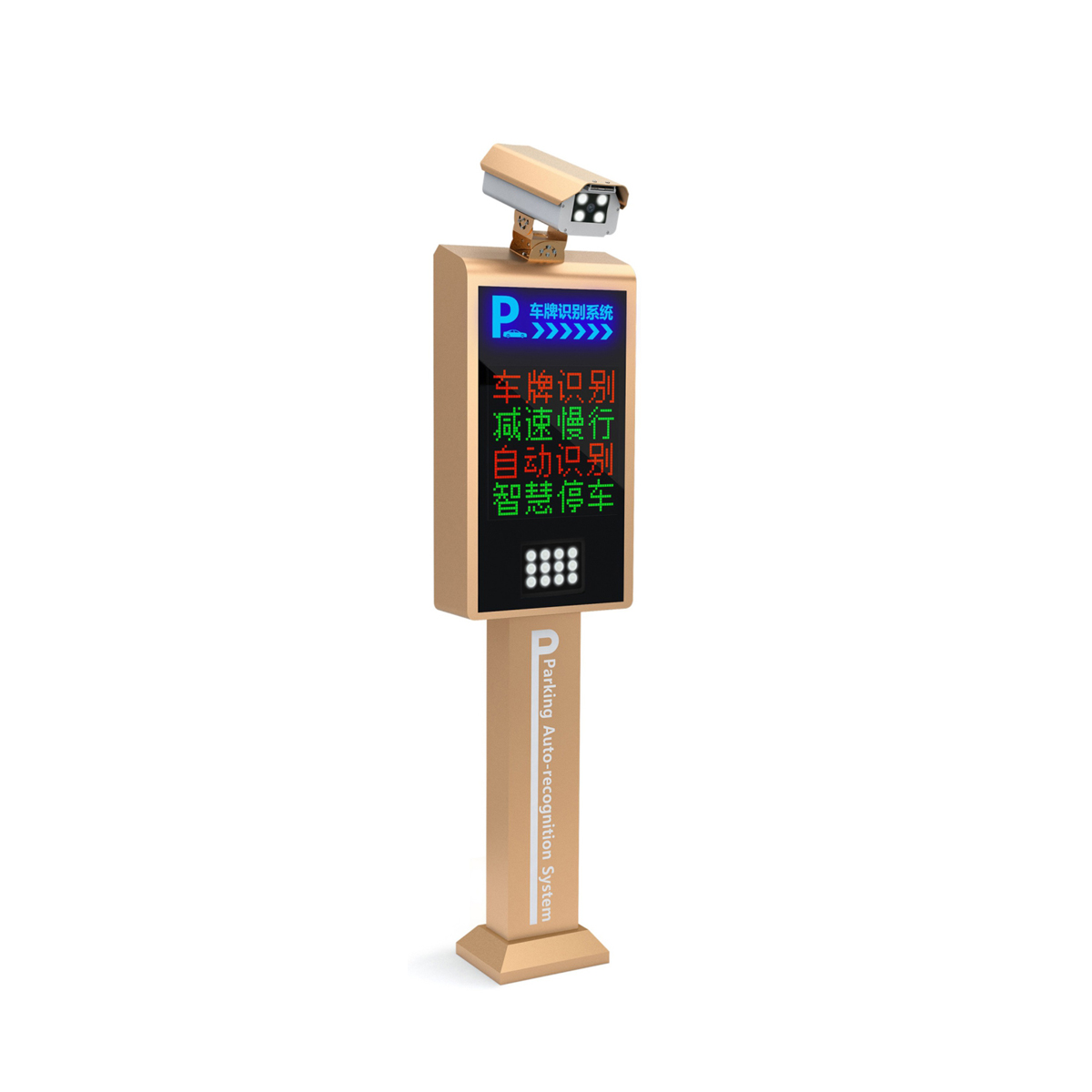

LPR Parking Access System Terminal LP-D14 with ALPR Camera
Specification
Name
|
Full HD Automatic License Plate Recognition Camera
|
Hardware Indexes
|
|
Place of Origin
|
China
|
|
Guangdong
|
Model Number
|
LPR-X82E
|
CPU
|
Hisilicon, specialized license plate recognition chip
|
Warranty
|
1 Year
|
Sensor
|
1/3" CMOS Image Sensor
|
Minimum Illumination
|
0.01Lux
|
Sensor
|
CMOS
|
Lens
|
6mm fixed focus lens
|
Built-In Light
|
4 high-power LED white lights
|
Performance Indexes
|
|
Plate Recognition Accuracy
|
≥97%
|
Plate Types
|
License plate
|
Triggering Mode
|
Video trigger, Loop trigger
|
Image Output
|
1080P(1920x1080),960P(1280x960),720P(1280x720),D1(704x576),CIF(352x288)
|
Picture Output
|
2 mega-pixel JPEG
|
Video Compression Format
|
H.264 High Profile, Main Profile, Baseline, MJPEG
|
Interface Parameters
|
|
Network Interface
|
10/100,RJ45
|
I/O
|
2 input & 2 output 3.5mm connecting terminals
|
Serial Interface
|
2 x RS485
|
Audio Interface
|
1 input & 1 output
|
SD Card
|
Support SD2.0 standard Micro SD(TF) card with a maximum capacity of 32G
|
Power Supply
|
AC220V±10%
|
Power Consumption
|
≤7.5W
|
Working Temperature
|
-25℃~+70℃
|
Protection IP
|
IP65
|
Size(mm)
|
452(L)*148(W)*120(H)
|
Weight
|
2.7kg
|
OEM
|
Supported
|
Supported Countries and Regions
- 4-line display;
- Cloud parking support;
- With SDK;
- Support LPR+Card;
- Support 4G / LAN Internet;
- Cloud parking support;
- With SDK;
- Support LPR+Card;
- Support 4G / LAN Internet;
