Display Driver Board NED-200
Display Driver Board NED-200
1. Main Characteristics

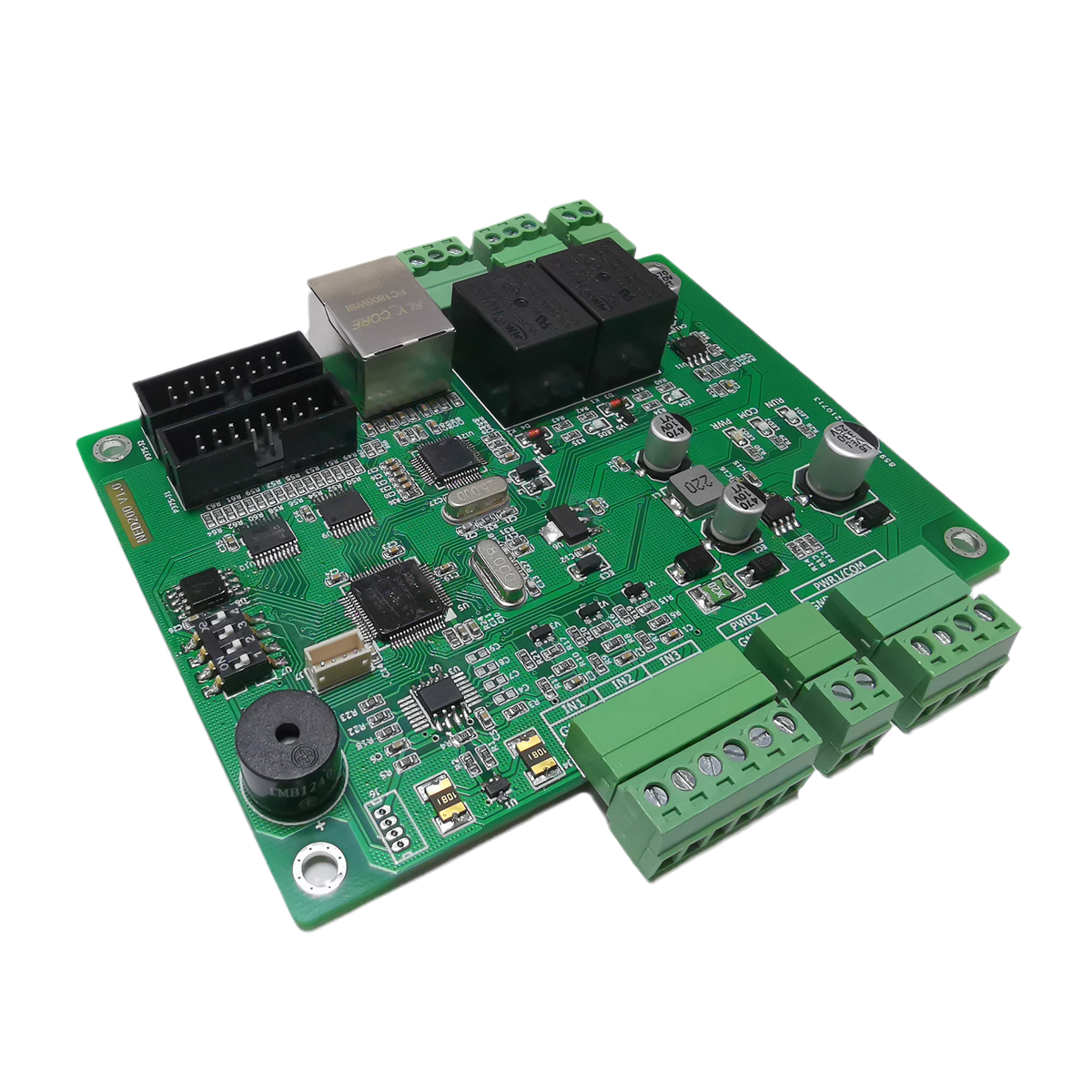

NED-200 is IP Network LED Display controller board with RS232/485 communication port; I/O input and relay output port. It can be used to driver LED display and use it as I/O board to control barrier gate and so on. We provide free SDK for you.
2. Main Technical Data
- IP Address Auto-Search;
- LED Brightness can adjustable;
- Support Full Color LED Display;
- Testing Demo is available.
3. Specifications
|
Network |
RJ45, RS232, RS485 |
|
Power |
DC5V, DC12V，<1W |
|
LED Model |
P3.75 or P10 |
|
Input I/O |
3 groups input I/O |
|
LED Port |
P3.75 plug *2 |
|
Output Relay |
Output Relay *2 |
|
Speaker |
Audio output speaker |
|
SDK |
Available, Highly customized |
4. Control Interface
-
RJ45, RS232, RS485: Communication port
-
Input I/O: loop detector, photocell, or any other I/O input
-
P3.75 Plug: LED model port, support ø3.75, P10 and so on standard led port.
-
Output Relay: This can be used to control barrier gates or any other.
-
Speaker: Audio output
5. Demo Show
6. Where is the NED200 used?
- TCPIP, RS485, RS232 Port;
- Support Full Color LED Display;
- Testing Demo is available with SDK.
- With 2 output relay
- With 3 input I/O
- Support ø3.75, P10 and so on standard led port.
- Support Full Color LED Display;
- Testing Demo is available with SDK.
- With 2 output relay
- With 3 input I/O
- Support ø3.75, P10 and so on standard led port.
