BARRIER GATE
Excelsoo is the leading brand for the vehicle barrier gate system in China. With Excelsoo, you can easily get good spare parts, professional repairing, and extensive warranty support. Our barrier gates can be integrated with a car parking access control system or car park ticketing system. Boom barrier arm will be lifted up to grant access upon verification from the control system. Excelsoo boom gate is compatible with most vehicle card access control and automated parking ticket system in all over of the world. Excelsoo barrier gate system in China design is optimized to offer a reliable yet affordable solution for residential condominium, apartment, commercial building and industrial factory usage.

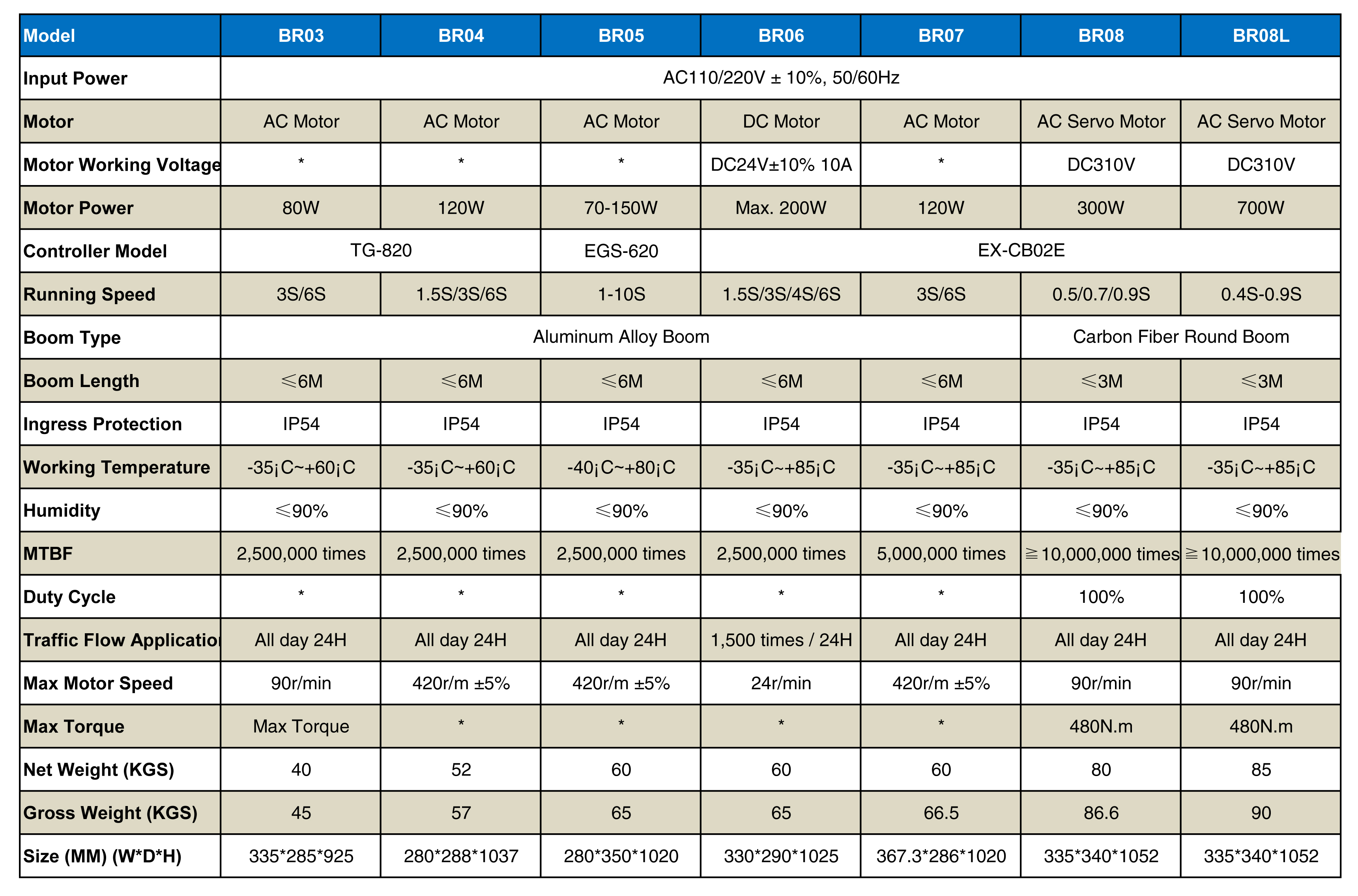

We have different types of barriers to meet your different application needs. The parameter table is as follows,
-
100mm LED Traffic Light for Parking Barrier Gate EX-TFL112-2
- Shape:100mm Cobweb cover
- High brightness LEDs with integrated optics
- Moisture and dust-tight seal(IP65)
- Total Harmonic Distortion<20%(with PFC)
- Operating Temperature:-40℃ to 70℃
- Angle: Avg. ≥60° Down ≥60°
- Operating voltage Range:12~24VDC
- Insulation Resistance:≥2M
- Life:100,000H
- Housing material: PC(PMMA)2021-10-09 -
300mm LED Traffic Light for Parking Barrier Gate EX-TFL312-2
- Shape:300mm (12”) Cobweb cover
- High brightness LEDs with integrated optics
- Moisture and dust-tight seal(IP67)
- Total Harmonic Distortion<20%(with PFC)
- Operating Temperature:-40℃ to 70℃
- Angle: Avg. ≥60° Down ≥60°
- Operating voltage Range:12~24VDC
- Insulation Resistance:≥2M
- Life:100,000H
- Housing material: PC(PMMA)2021-10-08 -
General AC Motor Boom Barrier Gate BR03
- Input Power: AC110/220V ± 10% 50/60Hz
- Running Speed: 3S/6S
- Motor Power: 80W
- Protection Level: IP54
- MTBF:2,500, 000 times
- Weight: 45KG2021-08-06 -
General AC Motor Boom Barrier Gate BR04
- Input Power: AC110/220V ± 10% 50/60Hz
- Running Speed: 1.2S/3S/6S
- Motor Power: 120W
- Protection Level: IP54
- MTBF:2,500, 000 times
- Weight: 55KG2021-08-06 -
General AC Motor Boom Barrier Gate BR07
- Input Power: AC110/220V ± 10% 50/60Hz
- Max. Motor Power: AC / 120W
- Running Speed: 3S/6S
- Protection Level: IP44
- MTBF: 2,500, 000 times2021-08-06 -
High-Speed Servo Motor Boom Barrier Gate BR08
- Input Power: AC110/220V ± 10% 50/60Hz
- Running Speed: 0.5/0.7/0.9S Adjustable
- Boom: Carbon Fiber Round Boom, Max. 3M
- Protection Level: IP54
- MTBF:10,000, 000 times
- Motor Power: 300W2021-08-06 -
Luxurious High-Speed Servo Motor Barrier Gate with LED Display BR08L
- Input Power: AC110/220V ± 10% 50/60Hz
- Running Speed: 0.4-0.9S Adjustable
- Boom: Carbon Fiber Round Boom, 0.4S/2M, 09S/3M
- Protection Level: IP54
- MTBF:10,000, 000 times
- Motor Power: 700W2021-08-06 -
DC Motor Boom Barrier Gate BR06
- Input Power: AC110/220V ± 10% 50/60Hz
- Motor Power: DC24V ±10% 10A
- Running Speed: 1.5S-6S Adjustable
- Protection Level: IP54
- MTBF:2,500, 000 times
- Max. Motor Power: 200W2021-08-06
