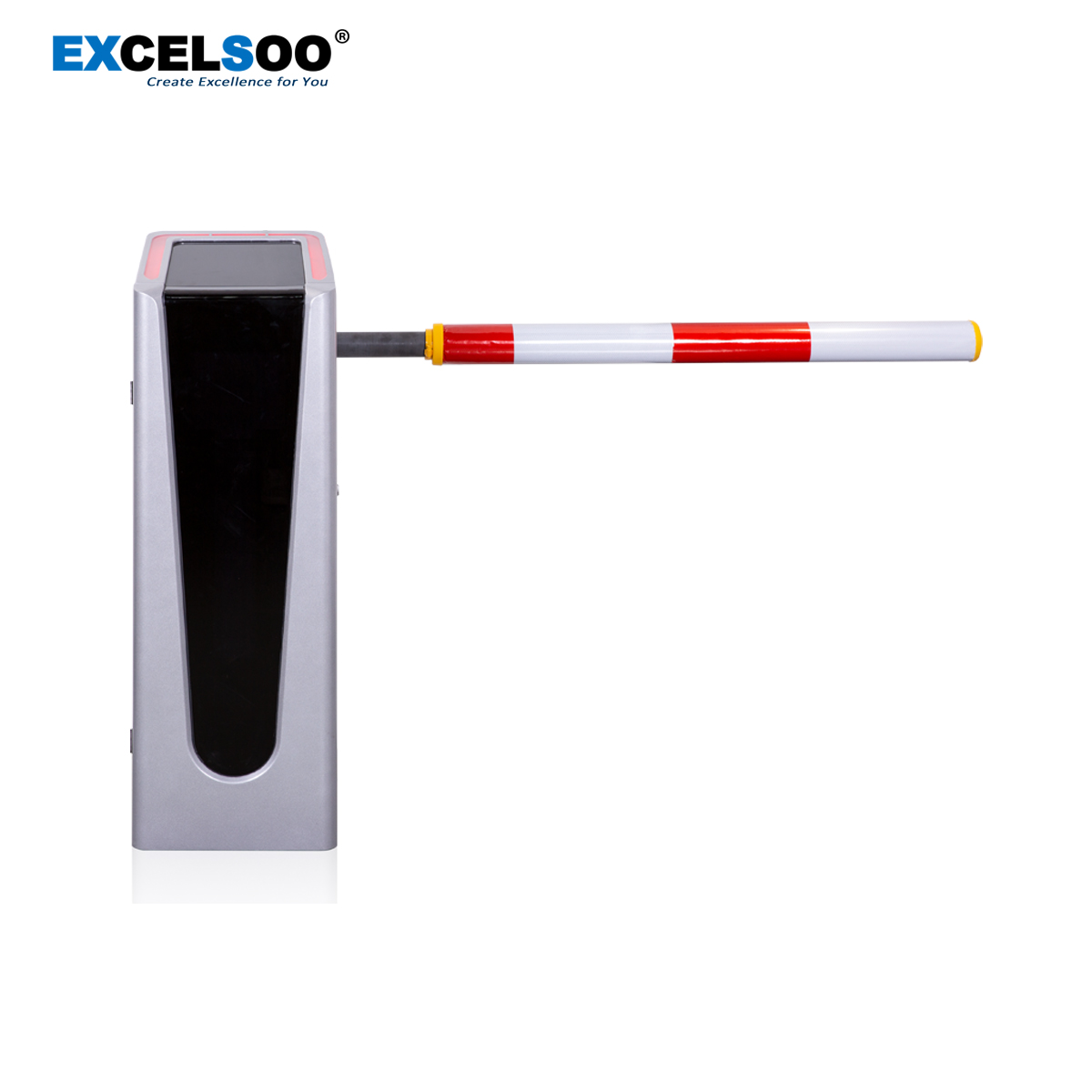

Luxurious High-Speed Servo Motor Barrier Gate with LED Display BR08L
Luxurious High-Speed Servo Motor Barrier Gate with LED Display BR08L
Luxurious High-Speed Servo Motor Boom Barrier Gate with LED Display BR08L
Heavy Duty Commercial Servo Motor Barrier Gate
Product Description:
- DC brushless servo motor with frequency conversion control;
- Allows for a smooth trip of the gate arm with no bounce in the end position;
- The fastest running speed can be 0.4 seconds (0.4~0.9s adjustable);
- 100% duty cycle and free maintenance make the barrier be proper for toll stations and parking systems!
Functions & Features:

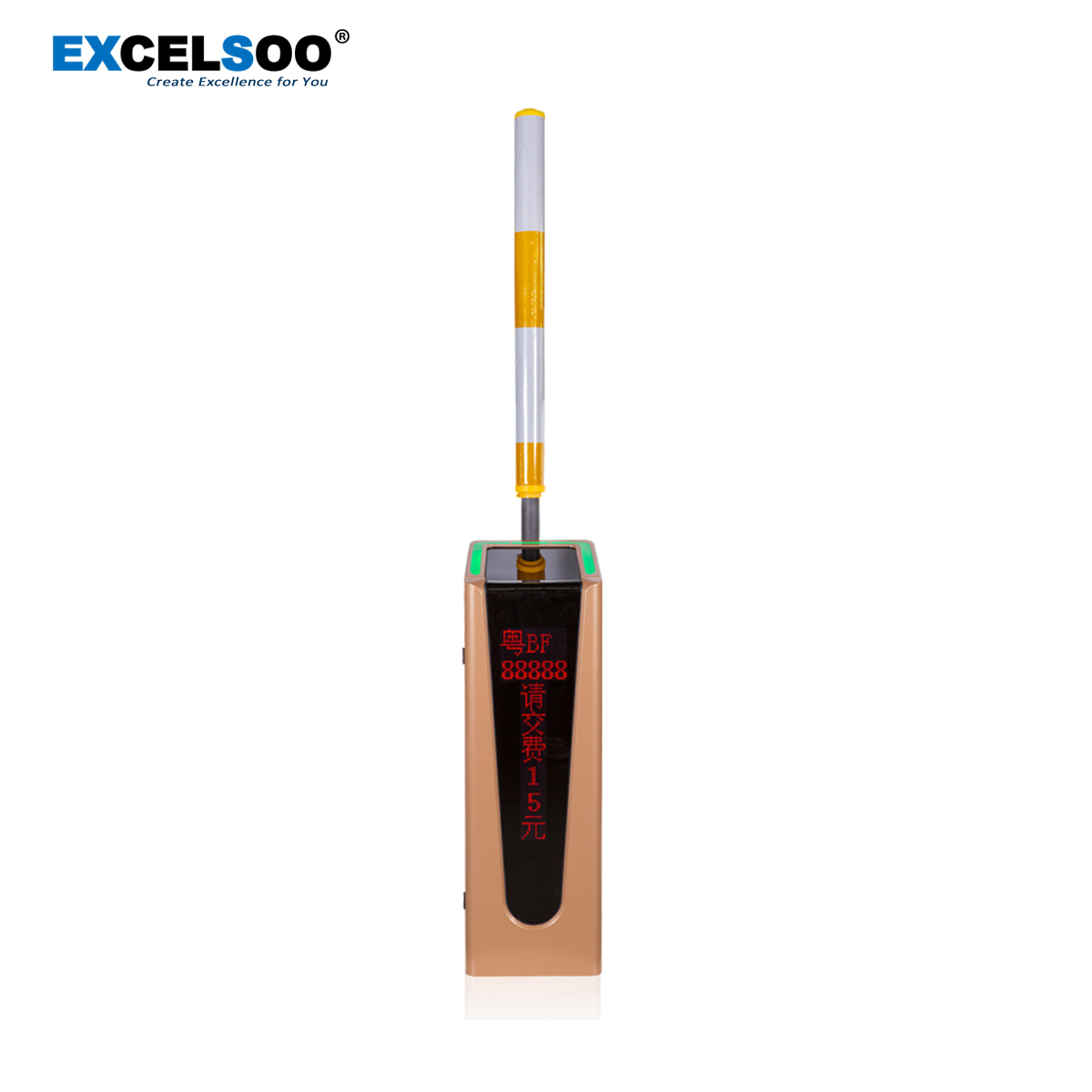

- With LED Display to show vehicle Information;
- DC permanent magnet synchronous motor (PMSM), servo control
- Superior performance, equivalent to the main motor of the CNC machine tool and the electric vehicle motor, has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat, and low noise;
- Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly;
- Electronic clutch design: more convenient to unlock or lock the motor when power off.(patented technology);

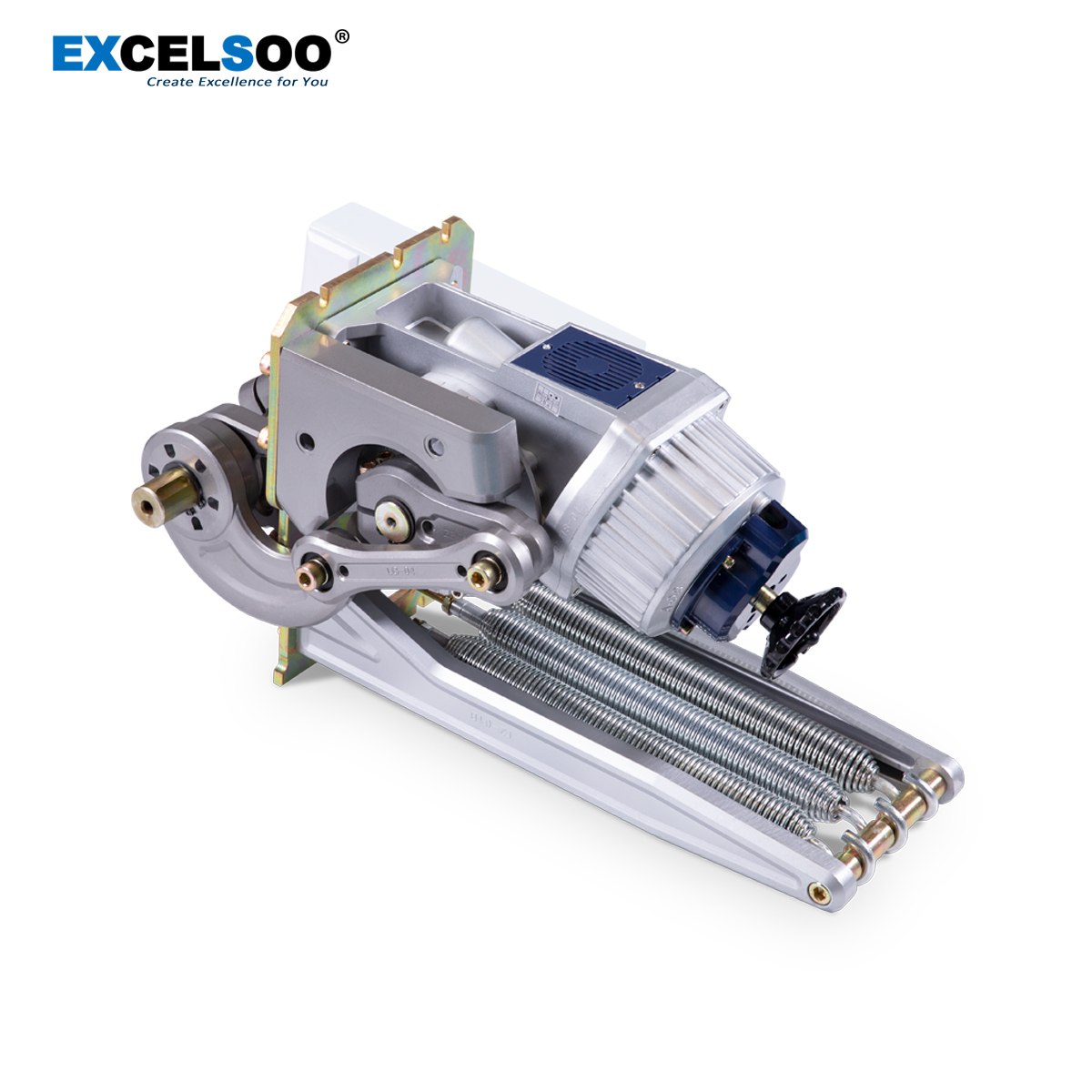

- Three tension spring crank transmission design, for a more stable and reliable structure. (patented technology);
- No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable;
- Reversing boom more sensitivity and reacting faster when encountering obstacles;
- With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function;
- LCD display controller, more humanized operation, and setting;
- NO/NC wire control signal input is optional;
- Integrated RS485 communication, RJ45 network, infrared photocell, loop detector interface, radar module, and more secondary development;
Technical Data:
Model | EX-BR08L | |
Controller Model | EX-CB02E (0.4-0.9S) | |
Boom-Type | Carbon Fiber Round Boom | |
Boom Length | ≤2M | ≤3M |
Running Speed | 0.4/0.7/0.9S | 0.9S |
Input Voltage | AC 220V±10%, AC110V | |
Motor Voltage | DC310V | |
Enclosure Rating | IP54 | |
Working Temperature | -35°C~+85°C | |
MTBF | 10000000 times | |
Duty Cycle | 100% | |
Traffic Flow Application | 24 hours uninterrupted operation | |
Max Motor Power | 700W | |
Max Motor Speed | 90r/min | |
Max Torque | 480N.m |
- Input Power: AC110/220V ± 10% 50/60Hz
- Running Speed: 0.4-0.9S Adjustable
- Boom: Carbon Fiber Round Boom, 0.4S/2M, 09S/3M
- Protection Level: IP54
- MTBF:10,000, 000 times
- Motor Power: 700W
- Running Speed: 0.4-0.9S Adjustable
- Boom: Carbon Fiber Round Boom, 0.4S/2M, 09S/3M
- Protection Level: IP54
- MTBF:10,000, 000 times
- Motor Power: 700W
