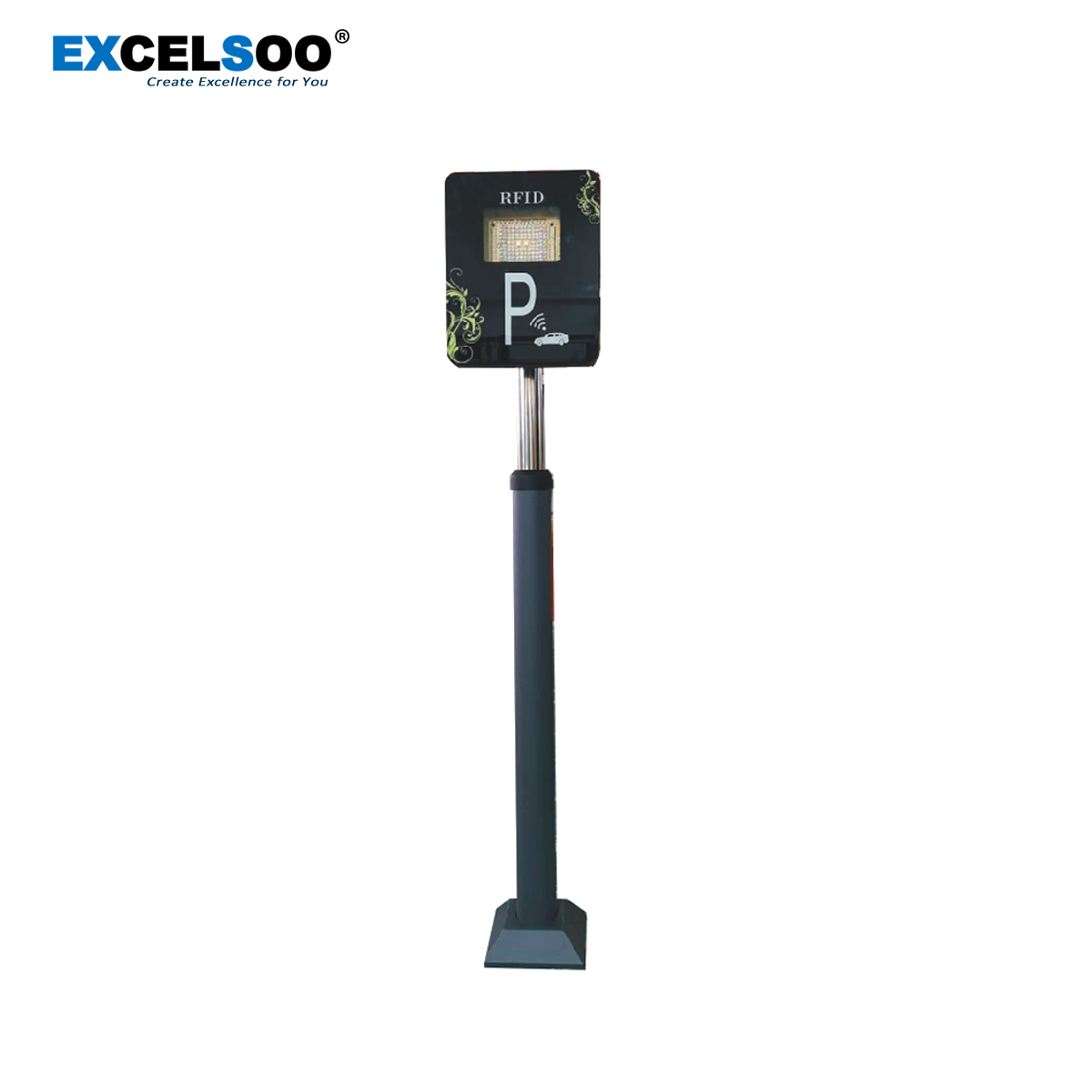

Long Range Reader for Parking System BRF-923
Long Range Reader for Parking System BRF-923
A Reader To Manage Long Range Mini Tags For the Parking System
Technical Data：
| Operating Mode: | Light-activated positioning, CDMA Bluetooth communication, sleep wake-up |
| Power: | DC12V～18V 3A |
| Power Adapter: | AC 110V/220V±10% /DC +12V |
| Working Power: | 12W |
| Working Frequency: | 433MHZ |
| Infrared Frequency: | 38KHZ |
| Reading Angle: | 65° |
| Reading Distance: | 1-20M |
| Tags Protocol: | CDMA |
| Communication Ports: | Wiegand 26/34, RS232/485 |
| Storage Temperature: | -45℃～+95℃ |
| Working Temperature: | -30℃～+75℃ |
| Relative Humidity: | ≤95% |
| Protection: | IP65 |
| Size: | 247*58*276mm, Max.H:1800mm |
| Weight: | 4.5KG |
- Reading Distance: 3-25M;
- Power: DC12V～18V 2A
- Working Power: 12W
- Ports: Wiegand 26/34, RS232/485
- Working Frequency: 433MHZ
- Reading Angle: 65°
- Tags Protocol: CDMA
- Size: 247*58*276mm, Max.H:1800mm
- Weight: 4.5KG
- With Adapter power and column
- Power: DC12V～18V 2A
- Working Power: 12W
- Ports: Wiegand 26/34, RS232/485
- Working Frequency: 433MHZ
- Reading Angle: 65°
- Tags Protocol: CDMA
- Size: 247*58*276mm, Max.H:1800mm
- Weight: 4.5KG
- With Adapter power and column
