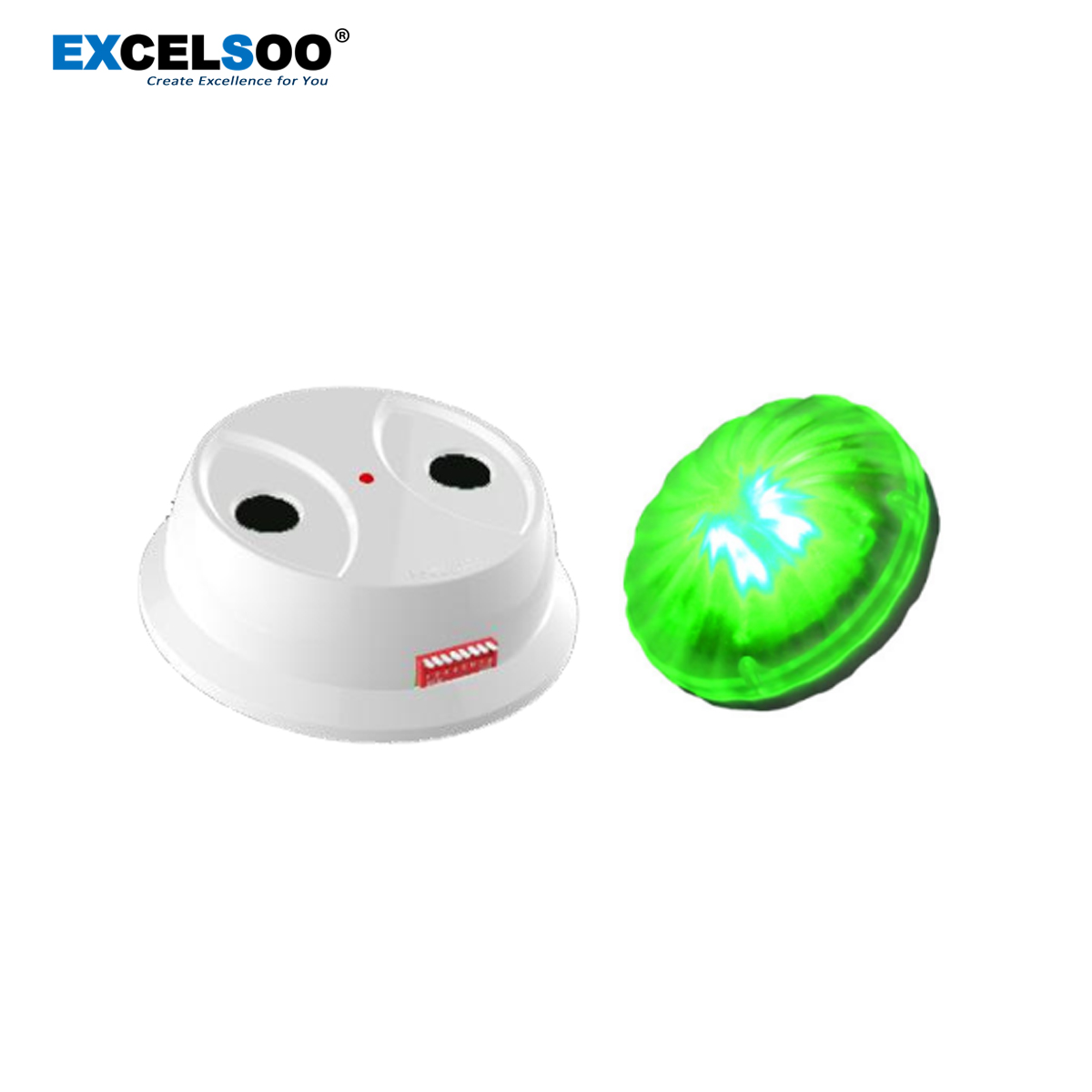

Parking Lots Ultrasonic Sensor EUS-201

Parking Lots Ultrasonic Sensor EUS-201

An important integral part of the parking guidance system

An ultrasonic sensor is installed above each parking space. The working principle of ultrasonic ranging is used to collect the unoccupied and occupied state information of parking space in real-time, control the indicator light of the parking to display different parking states, and immediately sends the parking state information to the Zone Controller through RS485 networking.

An ultrasonic sensor is used to detect the unoccupied and occupied state of parking. The integrated indicator light is used to display different colors according to the command of the detector. When there is no car in the parking space, the indicator light is green. However, when there is a car in the parking space, it is red.



Key Features:



  • Industrial grade design;
  • Easy to install and adjust;
  • Real-time monitoring and output in alarm distance;
  • Real-time monitoring parking space status.



Specification:



Technical Data
Device Name Ultrasonic Sensor
Model EUS-201
Host Query Command Format Hex 3 bytes
Communication Ask and answer, Half-duplex
Serial Port Settings 9600,N,8,1
Communication Port     RS485
Alarm Distance 0.50~4.00m
RS485 Communication Port A to 485A, B to 485B
Installation The front top of the parking space(height 1.0m~3.5m)
Working Temperature -20℃ ~50℃
Working Voltage DC12~24V±10%

Parking Lots Ultrasonic Sensor EUS-201

Parking Lots Ultrasonic Sensor EUS-201

- Indicator: Red/Green LED light;
- Communication: RS485;
 -Detection accuracy: ≥99.9%;
