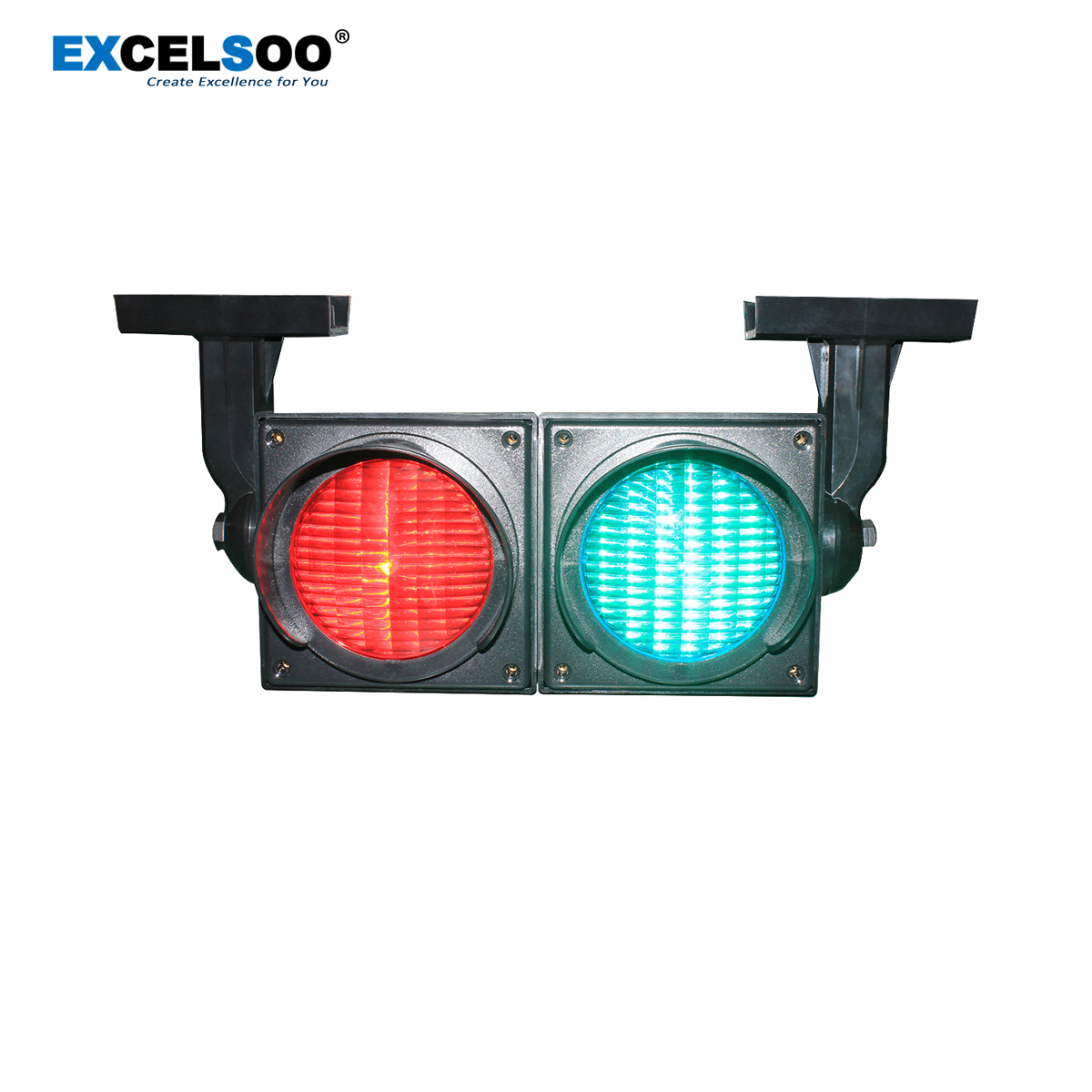

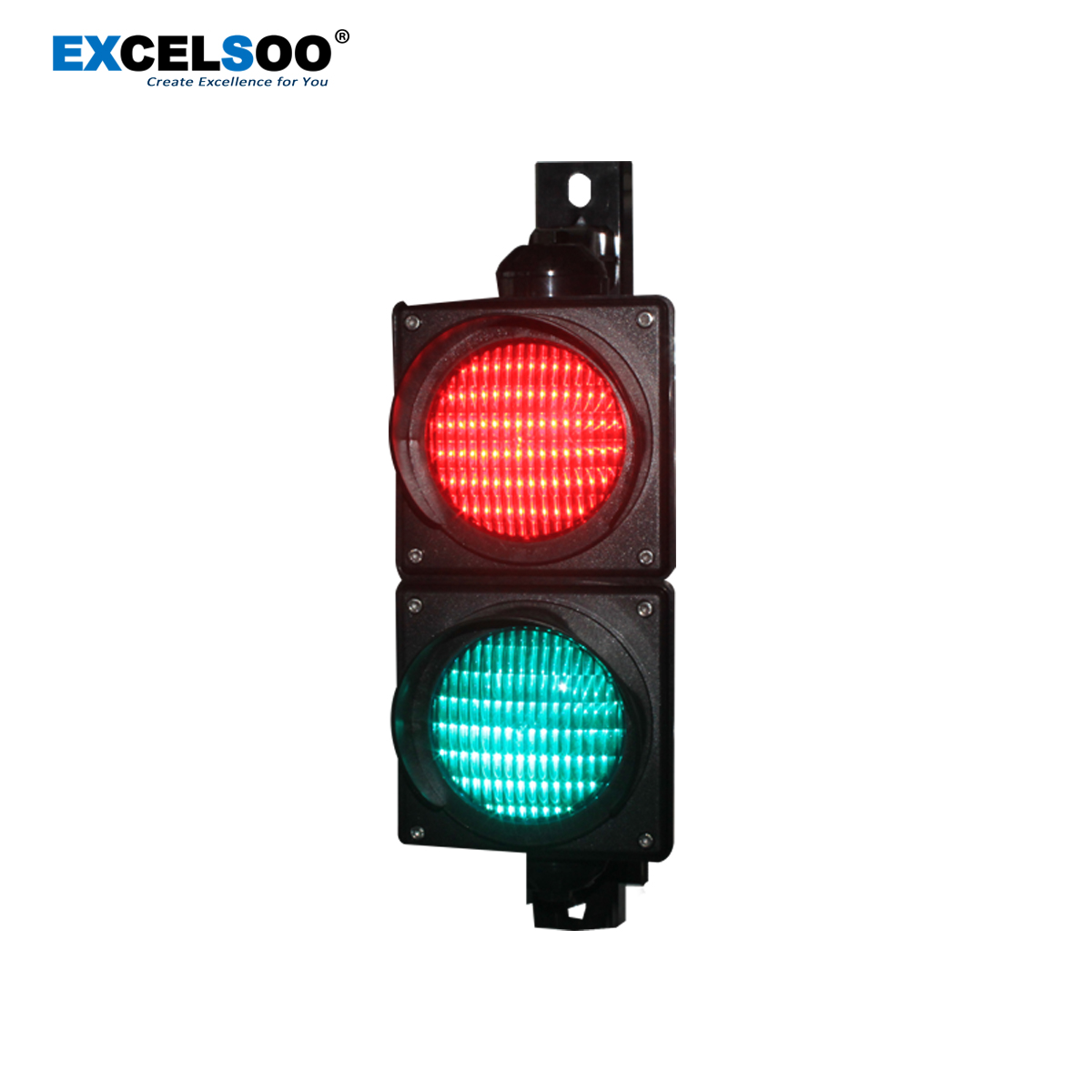

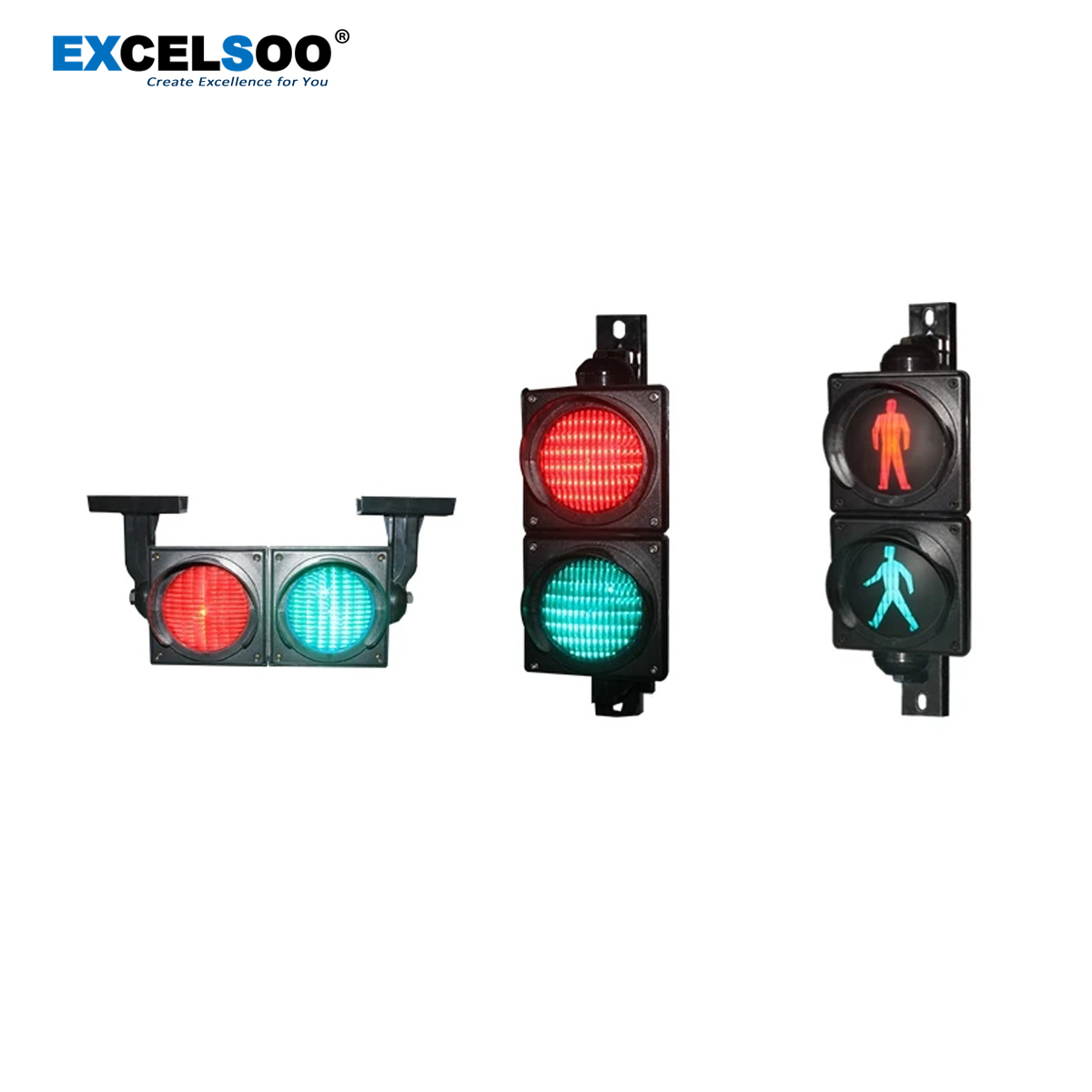

100mm LED Traffic Light for Parking Barrier Gate EX-TFL112-2
100mm LED Traffic Light for Parking Barrier Gate EX-TFL112-2
100mm LED Traffic Light for Parking Barrier Gate EX-TFL112-2
A Leading Parking/Door Access Controller Systems Manufacturer Supplier in China.
Key Features
- Lower consumption
- Fashion design
- Large viewing angle
- Long lifetime
- Waterproof IP 65
- The special optical system, color equality
- Far viewing distance
- Accord to international relational standard
Technical Parameter:
| Items | Parameters | |
| Model | EX-TFL112-2 | EX-TFL112H-2 |
| Color | Red | Green |
| Size | 100mm | 100mm |
| LEDs(pcs) | 37 | 1 |
| WaveLength | 625±5 | 505±5 |
| Module Shape | Round | Round |
| Power Consumption (W) | <6 | <6 |
| House Material | PC (UV-Stabilized Polycarbonate) | |
| Voltage (V) | DC 12-24; AC 100-277V | |
| Luminescence(cd) | 400cd | |
| Operating Temperature(℃) | -40℃~+70℃ | |
| Insulation Resistance | ≥2M | |
| Total Harmonic Distortion | <20% | |
| IP Level | IP65 | |
| Warranty | 1 Year | 3 Years |
- Shape:100mm Cobweb cover
- High brightness LEDs with integrated optics
- Moisture and dust-tight seal(IP65)
- Total Harmonic Distortion<20%(with PFC)
- Operating Temperature:-40℃ to 70℃
- Angle: Avg. ≥60° Down ≥60°
- Operating voltage Range:12~24VDC
- Insulation Resistance:≥2M
- Life:100,000H
- Housing material: PC(PMMA)
- High brightness LEDs with integrated optics
- Moisture and dust-tight seal(IP65)
- Total Harmonic Distortion<20%(with PFC)
- Operating Temperature:-40℃ to 70℃
- Angle: Avg. ≥60° Down ≥60°
- Operating voltage Range:12~24VDC
- Insulation Resistance:≥2M
- Life:100,000H
- Housing material: PC(PMMA)
